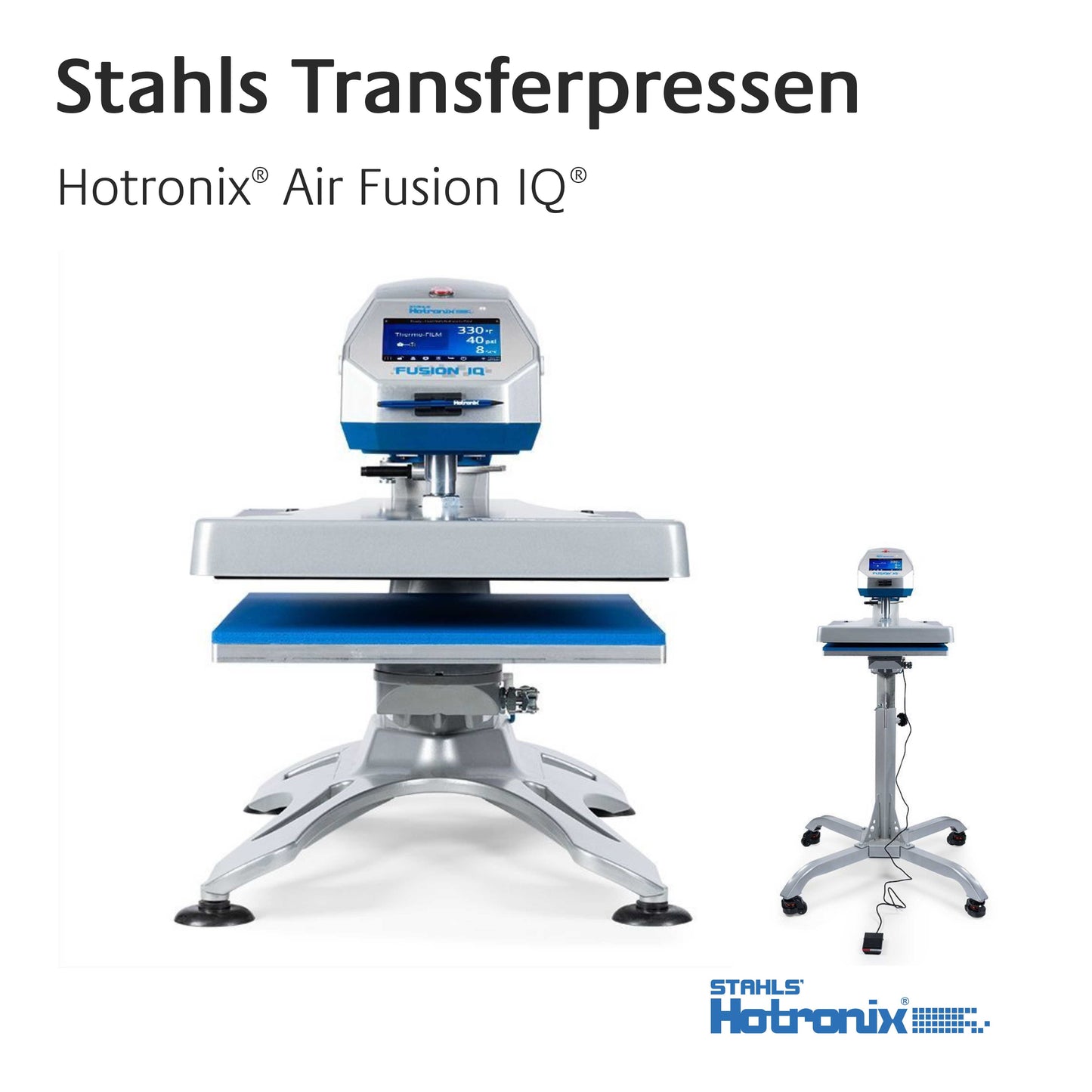

Stahls Transfer Press - Hotronix® Air Fusion IQ® Transfer Press

Stahls Transfer Press - Hotronix® Air Fusion IQ® Transfer Press

€ 4.065,00
€ 4.065,00
Sale Sold out
Shipping calculated at checkout.
variant

Hotronix® Fusion IQ®'s big brother

The Hotronix® Air Fusion IQ® is one of the most advanced single-head heat presses. It offers the ability to print large volumes with 100% precision. The Hotronix® Air Fusion IQ® boasts countless advantages that make it unique and the best in its class.

compressed air operated

No manual pressure is required to operate the Hotronix® Air Fusion IQ®. At the touch of a button, you can close the press and print on your textiles. After the set time has elapsed, it opens automatically and swings to the side. Ready for the next print? Simply press the foot pedal and the heating element swings back to its starting position.

This swing-away function also ensures that the Hotronix® Air Fusion IQ® provides a heat-free working area for the user. The Air Fusion IQ® is also equipped with Auto-Adjust-Pressure. This means that it automatically adjusts to the thickness of your textile - regardless of whether you are printing on a T-shirt or a jacket.

Digital displays

When using a heat press, three things are particularly important: time, temperature and pressure. The Hotronix® Air Fusion IQ® offers digital displays for all three, making it possible to print more precisely and efficiently than ever before.

No more guesswork thanks to pressure displays, accurate to the bar. using a compressor The pressure setting of the Hotronix® Air Fusion IQ® is 100% precise. Textile finishing in perfection: time, temperature and pressure are pneumatic transfer press fully controllable.

Intelligent transfer press

The Hotronix® Air Fusion IQ® is a heat press with brains. The intuitive touchscreen panel makes it particularly easy to access the Fusion IQ® controller. Use this feature to access pre-programmed settings that preheat the press to the perfect temperature for your individual print job.

The Fusion IQ® Controller also allows you to keep track of your machine's productivity via WIFI connection. Get access to user statistics or use the self-diagnosis function of the Hotronix® Air Fusion IQ® with this feature.

features

  • Available as a stand or table version
  • Pneumatic
  • auto-open function
  • Temperature adjustable up to 220° C (430° F)
  • Quick-Change system for floor panels

heating element

  • Cast-in, spiral heating element prevents “cold spots”
  • 2 cm thick, non-stick coated heating plate
  • Platinum RTD heating sensor
  • 40 x 50 cm

Technology

  • Intelligent IQ Board
  • Automatic pressure adjustment
  • Automatic timer
  • 1 cm silicone rubber mat on base plate

Quality

  • Made in USA
  • Durable and robust
  • Scratch-resistant, powder-coated finish
  • UL / ULC / CE / RoHS tested

specifications;

  • Hotronix® Air Fusion IQ® Table Top (1 package):
  • 240 V, 15 Amp, 3500 W
  • 95cm (L) x 63cm (W) x 68cm (H)
  • Net weight 72 kg
  • Gross weight 82 kg
  • Hotronix® Air Fusion IQ® Pedal Stand (2 packages):
  • Package 1: Transfer press
  • 240 V, 15 Amp, 3500 W
  • 95cm (L) x 57cm (W) x 60cm (H)
  • Net weight 56 ​​kg
  • Gross weight 61 kg
  • Package 2: Stand
  • 84cm (L) x 84cm (W) x 28cm (H)
  • Net weight 22 kg
  • Gross weight 26 kg

Downloads

additional information

  • Stahl's guarantee
  • 30-year warranty on the heating element
  • 5-year warranty on the frame construction
  • 2-year warranty on the press excluding wear parts
View full details

transfer presses

The RGF sells Stahls and Hotronix® transfer presses exclusively in bundles with Ricoh/Azon DTF and DTG printing systems

Azon Desktop DTF printing system

View all

Ricoh Textildruck printing systems

View all

How it works

In the Direct to Film (DTF) process, the desired motif for textile printing is first printed on a transfer film. A hot melt adhesive granulate is then applied and heated. This happens automatically in a single operation. The resulting transfer is later transferred to the textile using a hot press. The advantage of this process is its flexibility. A wide variety of textiles can be decorated: polyester, nylon, leather, but also classic cotton and mixed fabrics - without any pre-treatment.
