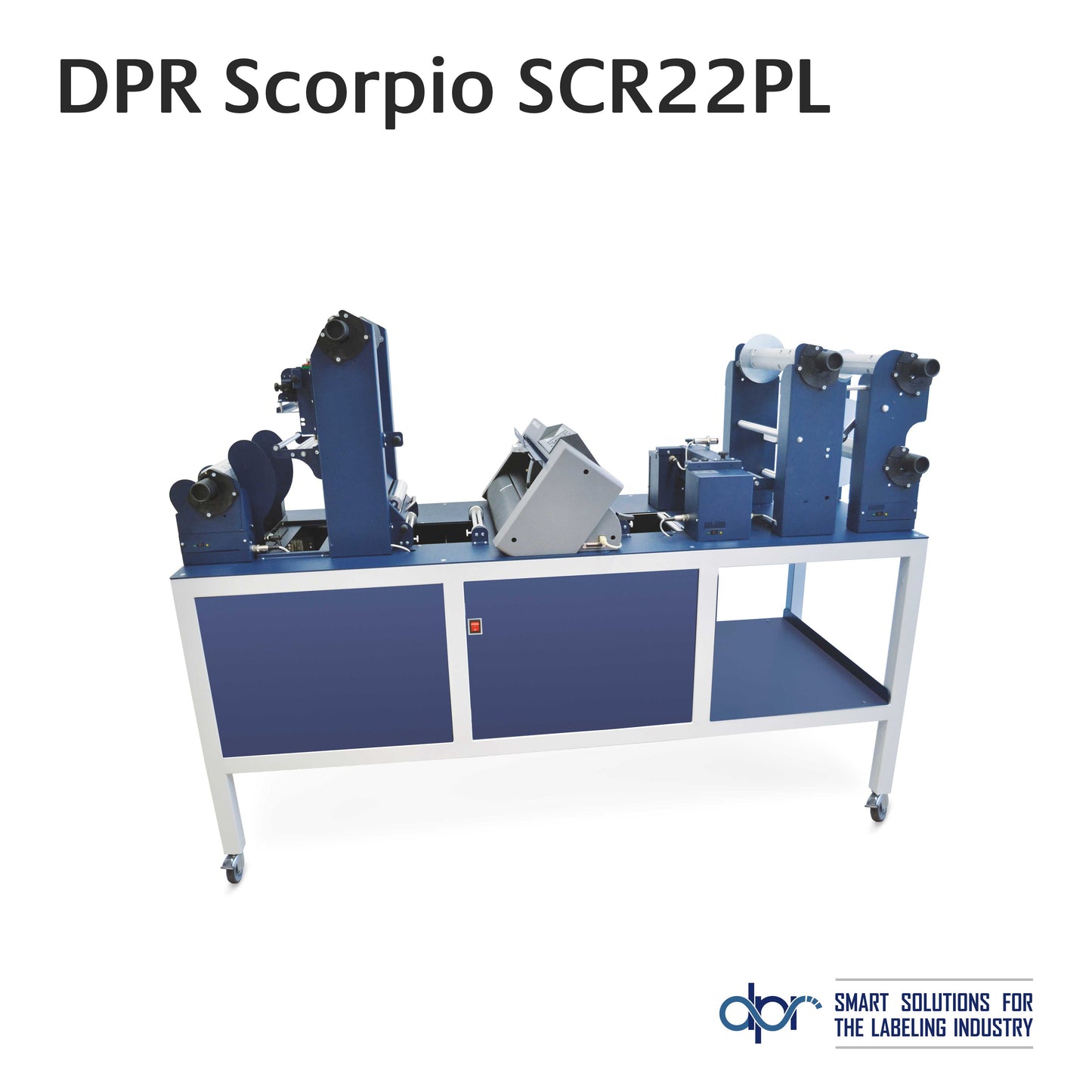

The Scorpio Series systems are all-in-one systems that unwind labels, laminate (SCR22PL and SCR35PL only), digitally die-cut, remove the excess label material around each die-cut shape, slit and rewind, providing everything you need for professional label cutting and finishing.
All systems offer a very precise solution for label finishing through the use of cutting plotter technology. This allows you to cut different material types and shapes in no time at all without incurring additional costs for cutting dies.
The devices are equipped with a cutter management tool, which together with a camera forms an integrated optical black mark registration system that optimizes the cutting speed and avoids synchronization problems.
All these features ensure full flexibility, unlimited variations in label design and a smooth workflow.
Producing full-bleed labels is no longer a nightmare. Print artwork beyond the bleed and enjoy the quality that our digital label finishing system offers!
The Scorpio series is a digital label finishing system specifically designed for on-demand finishing of short-run labels using digital color label printers and printing presses.
Virgo Cutting Manager
The device is equipped with a cutting management tool that works with a camera that has an integrated optical Black mark registration system that optimizes cutting speed and avoids synchronization problems. The operator can use this software to detect the black mark and load the cutting files, both created with Adobe Illustrator or Corel Draw.
Advantages
Own label production in small runs
reducing costs and storage requirements
The production of labels with full trim is no longer be a nightmare
Lamination option for labels for additional durability (no need for special media)
No need to order pre-cut label rolls
desktop-sized device
Plug and Play
6 months warranty - bring-in
Optical scanning The Scorpio series uses a camera that forms an integrated optical black mark registration system, which allows to read a black mark for each cutting plan. Optimizes the cutting speed. No problems with synchronization. Adjustable clutch This feature makes it possible to obtain flat, tight finished rolls and to cleanly wind up waste material. Size Matters The size of the Scorpio Series gives operators more room to load media easily and quickly, getting the machine up and running in minutes. Media Track The Scorpio series are equipped with an ultrasonic sensor system that creates a media loop at both the plotter entrance and exit to ensure a consistent media track during cutting operations. Cutting knives The Scorpio series is equipped with inexpensive multi-edge knives. The service life of the blades is extended by 4 times. Blank Labels Scorpio series can cut blank labels. Through Scorpio software, the operator only needs to set the label pitch. No printed black mark on the media is required. Software The Scorpio series software can be installed on any computer running Windows 8.1 or higher. It is not supported on macOS systems. Media The Scorpio series allows the use of media with a width of 101.6 mm (4") up to 350 mm (13.77"). Matrix Winding The Scorpio series features synchronized motorized core holders that prevent matrix tearing during removal and winding. Easy to move The Scorpio series is equipped with four wheels that make the machine easy to move. Remote Support Customers whose computers are connected to the Internet can be reached by one of our representatives for remote support and firmware upgrades.
Prices on request
