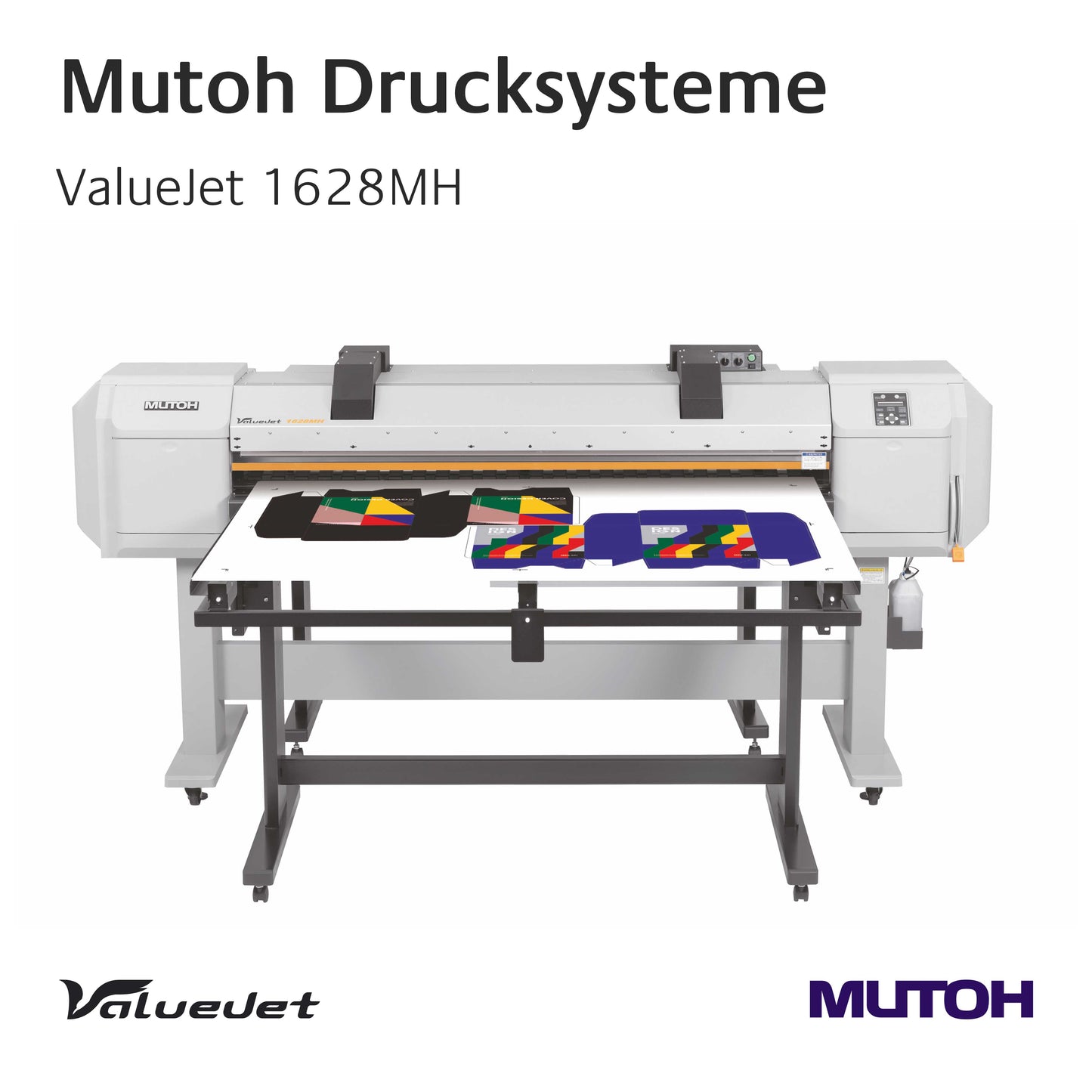

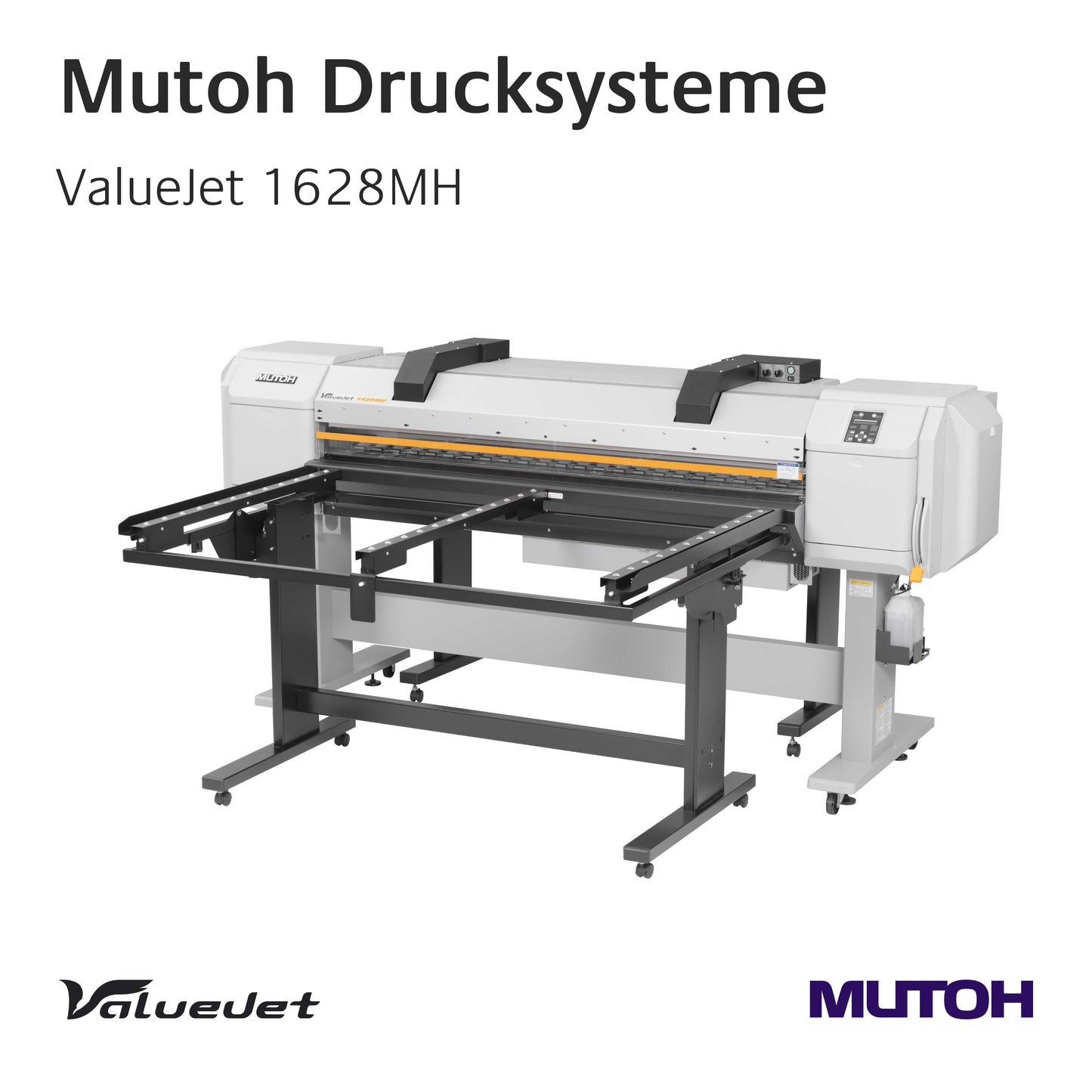

Mutoh - ValueJet 1628MH

Print on rigid media up to 16 mm and 15 kg and roll media up to 30 kg. The ValueJet 1628MH Hybrid printer delivers high quality prints on a wide range of roll and rigid media, such as ABS, aluminum, sandwich board, cardboard, non-PVC media, PE, PET, PMMA, PVC foam board, recyclable fiber-based paper, uncoated polyester, Tyvek, heat-sensitive substrates, ...

application possibilities

The ValueJet 1628MH is equally suitable for sign and print shops producing indoor and outdoor prints, as well as for graphic shops looking for a digital solution for short-run proofing, production of packaging prototypes or custom labels, and even for industrial printers specializing in thermal printing.

product highlights

• 64" (1625 mm) rigid and roll-to-roll printing
• Rigid materials up to 16 mm / 15 kg - roll substrates up to 30 kg
• Quick switching between roll and rigid material
• Up to 20% faster speed than the ValueJet 1627MH
• 8 color ink set: C, M, Y, K, O, G, B, Wh
• Very large color gamut and extremely accurate color reproduction
• Ideal for high-resolution prints for short distances
• Maintaining the real look and feel of the substrate
• Printing inks extremely stretchable and shrinkable

64” (162cm) Hot Air Hybrid Printer

Technical specifications

Printing technology Drop-on-demand micro-piezo inkjet technology
printheads 1
Nozzle configuration 180 nozzles x 8 lines
Droplet mass range (pl) 4 to 21.3
Head height Automatic *

* : The media thickness is measured electronically and the head height is adjusted automatically.

Specifications for rigid media

Min./Max. media width 182 mm (7.17") / 1625 mm (63.97")
Max. print width 1615 mm (63.58")
Max. media length 200 mm (7.87") - 1200 mm (47.24")
Max. thickness of the medium 16 mm
Max. media weight 15 kg
Media drying system 64" full width air knife

Roll Media Specifications

Min./Max. media width 182 mm (7.17") / 1625 mm (63.97")
Max. print width 1615 mm (63.58")
Media dimensions * Ø 150 mm / 2" & 3" / 30 kg
* : Standard non-motorized roller blind system
Media drying system 64" full width air knife

Typical media surface temperature: 40 °C - 50 °C

ink specifications

Ink type MP31 multi-purpose ink
Ink colors / Volume CMYK + White & cleaning / 500 ml pack *
* : 500 ml pack requires optional adapter OGB / 220 ml cassette
Ink Setup 4 colors (C, M, Y, K), 5 colors (C, M, Y, K, Wh), 7 colors (C, M, Y, K, Or, Gr, Bl), 8 colors (C, M, Y, K, Or, Gr, Bl, Wh)
Ink consumption 6.6 ml/m²
* : Average ink consumption at 720 dpi - (CMYK setting)
UV resistance CMYK - without lamination Up to 2 years outdoors *

: In case of mechanical stress, protection (lamination ...) is required.
Stabilization is required before lamination.

performance (m²/h)

(*) When the printer is configured in 5-color mode, the speed for printing white-only data is the same as the speed of the 4-color configuration. To ensure that a particular media type and brand is suitable for your individual application and target speed, Mutoh recommends conducting print tests beforehand.

dimensions of the machine

Width x Depth x Height 2698 x 818 x 1302 mm (roll)
Width x Depth x Height 2698 x 2730 x 1302 mm (Rigid)
Weight 201.6 kg (printer + stand) + 43 kg (table weight - per table)

scope of delivery

ValueJet 1628MH Hybrid Printer 64" - 1625 Media Width

• + 2 sets of VJ-HCIPADPT ink pack adapters (8 pieces in total), compatible with MP-31 ink and cleaning fluid packs
• + 8 x MP31-CL500E cleaning fluid for initial commissioning
• + Fixed tables (2 x VJ1617H-TBL)
• No RIP software included
• No motorized winding system included
• No ink included
• It is recommended to order the cleaner with a new system

Mutoh - ValueJet 1628MH data sheet
