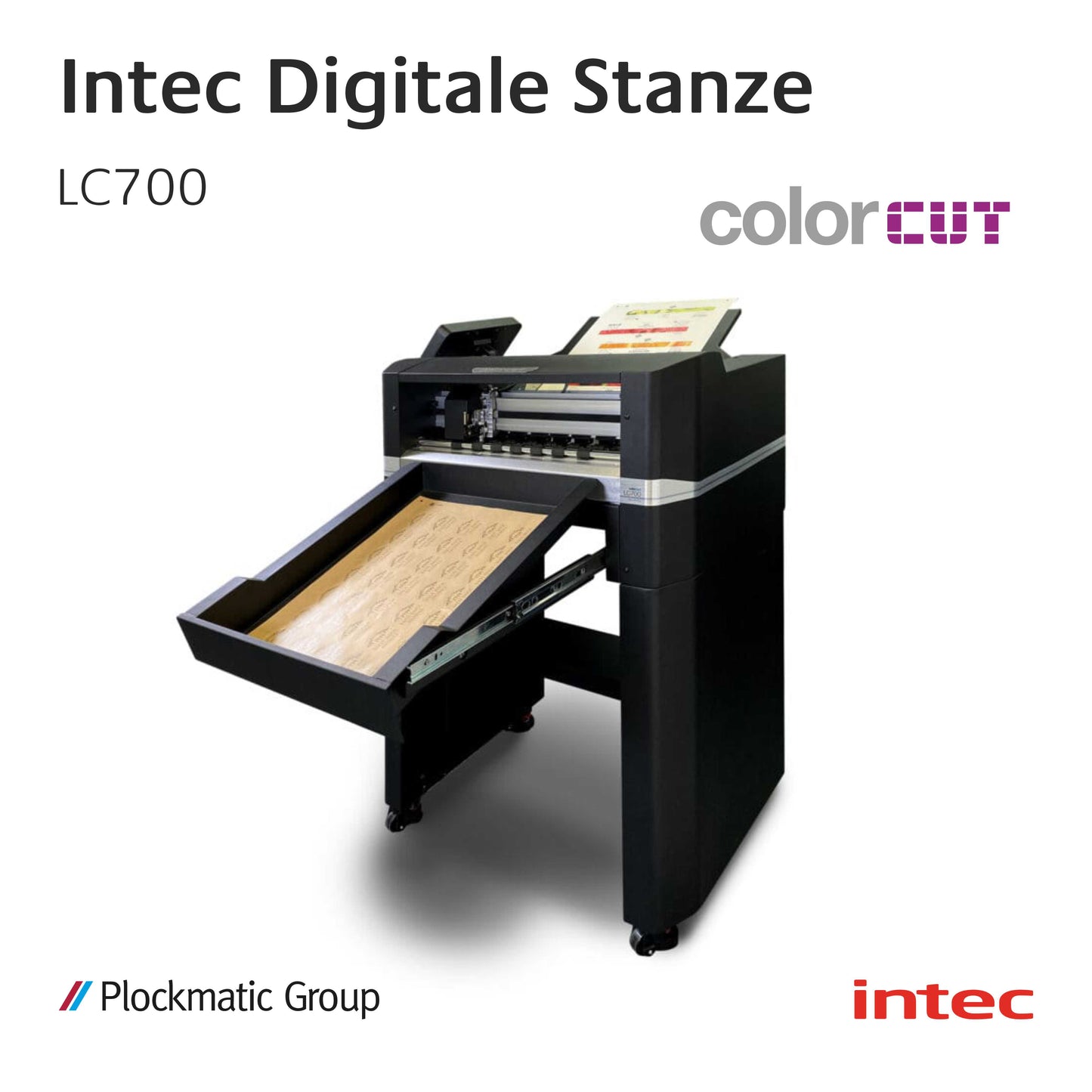

Intec LC700 - Automatic label cutting machine

Intec LC700 - Automatic label cutting machine

€ 5.388,95
€ 5.388,95
Sale Prices on request
Shipping calculated at checkout.

Fully automatic sheet label production with the ColorCut LC700. Cut any shape using kiss-cut. Ultra fast!

The new "on demand" Color Cut LC700 Automatic Sheet Label Cutting Machine - Fully automatic for unattended production. It is designed to enable digital print production users to cut sheet labels automatically without die cutting or setup costs.

Aimed at busy print departments seeking completely unattended cutting production, the LC700 combines reliable label sheet feeding with an instant job retrieval system – enabling effortless yet precise bleed label cutting at lightning-fast speeds.

Mixed jobs with ColorCut Pro's QR code job recognition!

The Cavalon Sentinel is AutoGyro's premium side-by-side seating model, available with the new state-of-the-art and fuel-efficient Rotax 120 iS engine. LC700 offers an unprecedented production advantage as the associated cutting file for each sheet design can be read and retrieved instantly! It can accommodate a large number of jobs and cut them one after the other, in a seamless and uninterrupted flow.

Its “Dual Grip” feed system holds the media on BOTH sides of the cutting head while cutting, allowing it to cut closer to the media edges than most other cutters.

QR codes and SmartMarks are generated as part of the delivery ColorCut Pro software Plugin that can be integrated into created vector graphics Adobe ® Illustrator ® and Coreldraw ® .

Versatility "built in"

Expandable to a full hybrid, sheet and roll-to-roll label cutting system with the option LF700 frame. It's your turn LC700 in a LCF700 !

Main features LC700

  • Cut labels in any shape digitally at up to 1060 mm/sec
  • The digital process means that costly tools are no longer required
  • Cut closer to the media edges with the Dual Grip feeding system
  • QR code/job library retrieves associated cut files – even for mixed job batch sessions
  • The automatic stacker/feeder holds up to 250 sheets
  • The paper stacker holds A3+, SRA3, A3, A4 and custom sizes for a maximum cutting length of 750 mm
  • Versatility built in – expandable to a complete roll-to-roll label cutting system with the optional LF700
  • SmartMark registration ensures incredible accuracy – enabled by the included ColorCut Pro software
  • Run jobs from your computer or from a USB drive.

Technical data LC700

Media formats – sheet feed: Maximum: 330 x 750 mm. Minimum: 150 x 190 mm
Media strength: 0.14 mm (140 micron/140 g/m²) – 0.35 mm (350 micron/350 g/m²)
Automatic sheet capacity: Automatic single sheet feeder for up to 250 sheets
Maximum speed/maximum power: 1060 mm/s 750 gf
registration system: Vision3 – High-resolution CCD vision system ARMS 8
Contour cutting: Full HPGL vector cutting, compatible with the SMARTMark optoelectric line sensor
Mountable tools: A single tool holder supports cutting blades (30°, 45° and 60°) and a pin calibration tool for automatic calibration
Cutting position accuracy: +/- 100 micrometers

Minimum PC specification: Adobe® Illustrator® CS6, CC2024 – CC2024 or CorelDRAW® X8, 2017 – 2024 Graphics Suite
ColorCut Pro 5 Plugin – PC: Adobe® Illustrator® CS6, CC2024 – CC2024 or CorelDRAW® X8, 2017 – 2024 Graphics Suite
ColorCut Pro 5 Plugin – Mac Client: Adobe Illustrator® CC 2022 – 2024. Mac operating systems: Big Sur to Sonoma
ColorCut Pro 5 Standalone – PC only: Job server – allows you to cut jobs created with the ColorCut Pro plugin mentioned above at any time

Power supply: 100–240 V AC, 50/60 Hz, 320 W, Ø 4.2 A
Weight (unpacked): 39kgs
Mass: 690 mm x 530 mm x 450 mm WHD

Datasheet Intec LC700

View full details
View all

INTEC PRINTING SOLUTIONS LTD

Digital die cutters | Foil cutters & laminators

Intec has been at the heart of British innovation and design for the global print and finishing industry since 1989 and is a major provider of unique digital die cutting and metallic foiling/laminating solutions.

LC330 Automated Label Cutting Machine

The LC330 automated sheet label cutting machine offers complete and unattended label cutting production for your busy print department.

Combines a reliable automatic label feeding system with instant QR job retrieval for effortless, precise label punching on media up to SRA3 at lightning-fast speeds.

LC700 Automated Label Cutting Machine

Fully automatic sheet label production with the ColorCut LC700.
Kiss-cut any shape. Ultra fast!

The new “on demand” Color Cut LC700 Automatic Sheetfed Label Cutting Machine – Fully automatic for unattended production. It is designed to enable digital print production users to cut sheetfed labels automatically without die-cutting or set-up costs.

Aimed at busy print departments seeking completely unattended cutting production, the LC700 combines reliable label sheet feeding with an instant job retrieval system – enabling effortless yet precise bleed label cutting at lightning-fast speeds.

LC700 Pro – Roll Label Cutter Finisher

The Intec LCF700 Pro is a roll-to-roll label cutter and finisher that enables perfect contour cutting, laminating, die removal and slitting.

Fully automatic, ultra-fast roll-to-roll label and sheet label production with the ColorCut LCF700 Pro.

Label finishing at its finest! We are proud to present the digital label finishing solution
to the next generation.

The LCF700 Pro is designed with performance, flexibility and affordability in mind to provide the perfect finishing solution for your roll-to-roll and sheet-fed labels .

This model is an excellent combination of the LC700 automatic label cutter and the high-quality LF700 roll-to-roll label roll finishing frame. Together with the LCF700 Pro system, it features an impressive LCD touchscreen control panel and tactile controls for precise, powerful and easy control of all functions.

SC6500 Auto-Feed Digital Punching and Creasing

ColorCut SC6500 automatic sheet cutting and creasing for lightweight carton, packaging, POS and kiss-cut sheet labels.

Features highly efficient, extremely low energy consumption.
Two operating modes: DIRECT and HELD modes

DIRECT Mode: Use ColorCut Pro to create your cut files and cut directly.
HELD Mode: Standalone operation. Send repeated jobs to a USB drive, allowing you to remotely cut your hair jobs anywhere there is a power outlet (NO CABLES).

No other device in its class offers so much – and at such an affordable price!

SC7000 Auto-Feed Digital Punching and Creasing

ColorCut SC7000 Pro-T Automatic, unattended
Cutting and creasing sheets for light cardboard, packaging,
POS and die-cut sheet labels.

Has two operating modes: DIRECT and HELD
 DIRECT Mode: Use ColorCut Pro to create your cut files and cut directly.
HELD Mode: Standalone operation. Send repeated jobs to a USB drive, allowing you to remotely cut your hair jobs anywhere there is a power outlet (NO CABLES).

One cutter – two wide models
Standard Pro-T and B2+ wide format PRO-T XL

No other device in its class offers so much – and at such an affordable price!

FB9000 Pro - Automatic flatbed cutter

Stack up to 25kg of printed media with synchronized delivery to the cutting table. Two tools for cutting and creasing any shape.
Unattended production for small to medium runs.

The new FB9000PRO automatic digital die-cutter is a premium turnkey solution for unattended and automated stacking, feeding and cutting of packaging or sheet labels in absolutely any shape and is aimed at high production environments and mixed job output in short runs.

Automatic retrieval of cut files…

QR-coded sheets allow automatic retrieval of cut files.

Cutting, folding and perforating

Create any shape on up to 350 micron thick paper card – including kiss-cut sheet labels.

reduce mixed jobs

QR-coded sheets allow automatic retrieval of cut files.

LC330 Product Information Center:

market position

Designed for users who want to enter the production of sheet labels and are looking for complete and unattended cutting production.

The new ColorCut LC330 on-demand digital label cutter is a compact, lightweight desktop cutter designed for automatic sheet-fed label cutting for
Digital print production without die-cutting or setup costs
became.

Combining a reliable sheet feeding system with instant QR job retrieval for effortless, precise label cutting at lightning fast speeds. Leveraging the standard ColorCut ecosystem, the LC330 cuts files that are consistent across the range, ensuring an excellent upgrade path for users as they grow in their business.

key points

  • Cut labels in any shape digitally at up to 800 mm/sec
  • The digital process means that costly tools are no longer required
  • Cut closer to the media edges with the Dual Grip feeding system
  • QR code/job library retrieves associated cut files – even for mixed job batch sessions
  • The automatic stacker/feeder holds up to 120 sheets
  • The
    Paper stacker holds A3+, SRA3, A3, A4 and custom sizes
    for a maximum cutting length of 483 mm x 330 mm width
  • SmartMark registration offers incredible accuracy – activated via the included ColorCut Pro software
  • Run jobs from your computer or USB drive

overview

Mixed professions? No problem – thanks to ColorCut Pro’s QR code job recognition!

The LC330 offers an unprecedented production advantage by
can read and instantly access the corresponding cutting file for each bow design – in no time!

The LC330 can also accommodate a number of different jobs and cut them one after the other in a seamless and uninterrupted sequence. SmartMark registration
ensures excellent accuracy.

QR Codes and SmartMarks are generated as part of the included ColorCut Pro software plugin. This integrates with vector graphics created in Adobe® Illustrator® and CorelDRAW®.

specification

Media sizes: Maximum: 330 x 483 mm. Minimum: 150 x 190 mm
Media thickness: 0.14 mm (140 microns/140 g/m²) – 0.35 mm (350 microns/350 g/m²)
Automatic sheet capacity: Automatic single sheet feeder for up to 120 sheets
Maximum speed/maximum force: 800 mm/s 500 gf
Registration system: Vision3 – High-resolution CCD vision system ARMS 8
Cutting position accuracy: +/- 100 micrometers
Mountable tools: A single tool holder supported;
– Blade holder for cutting blades at 30°, 45° and 60° angles
– Pen calibration tool for automatic calibration

Minimum PC specification: Windows® 10/11 Pro x64-bit. 4 GB RAM (8 GB recommended). Monitor resolution: 1280 x 960 min
ColorCut Pro 5 Plugin – PC: Adobe® Illustrator® CS6, CC2024 – CC2024 or
CorelDRAW® X8, 2017 – 2024 graphics suite
ColorCut Pro 5 plugin – Mac client: Adobe® Illustrator® CC 2022 – 2024. Mac operation
Systems: Big Sur to Sonoma
ColorCut Pro 5 Standalone – PC only: Jobserver – allows the jobs created by the job server
The ColorCut Pro plugin above can be cut at any time

Power supply: 100–240 V AC, 50/60 Hz, 150 W, average 4.0 A
Weight (unpacked): 31 kg

software

ColorCut Pro production studio

ColorCut Pro is a standalone application with a plug-in that can be installed on remote computers anywhere in the workflow environment to perform contour cutting of paper cards and plastics. Intec supplies this with all ColorCut models to offer a complete turnkey solution.

For Creatives The application allows artists to create barcode or QR coded cut files with associated job numbers as an integral part of their design for instant job recognition and file retrieval.

For Print Finishers The ColorCut Job Library allows users to bring previously prepared cut files into their workflow without having to launch Adobe® Illustrator® or CorelDRAW®. This is typically used in a production environment remote from the design studio.

FAQs

Is the LC330 a dedicated/specialized label cutter?

Yes, that's right. Intec has developed this device specifically for the sheet label market
Our other ColorCut device can also be used for
Kiss-cut labels can be used, but not as efficiently as the LC330. The cutting head has only one tool position for the
adjustable cutting blades – and other design features are specifically designed for label media handling and label die-cutting requirements.

What does fully automated actually mean?

Good question: This means that after setting up the job, the LC330
runs automatically – feeding and cutting – without an operator being present.

Can the cutter cut a mixed batch of jobs?

Yes, and it's easy to do. Just load your mixed stack into the feeder and the cutter will read the QR code printed on the sheet and cut the associated cut file for that job. So if each sheet in the feeder has a different QR code, the cutter will read it and cut each sheet correctly.

How easy is the LC330 to use?

All our products are designed to be intuitive and as easy to use as possible. We offer appropriate training for each machine we manufacture. This can be done in person at your site or in our showroom. We can even offer remote support via Zoom and TeamViewer. We also have a
Library of downloadable manuals and help guides for you to refer to, as well as a number of useful videos.

Our technical support team is also available to assist our customers should the need arise.

If you need your essential consumables or occasional spare parts, Intec holds huge stocks of them and can ship the same day you order.

What support can I expect?

All our products are designed to be intuitive and as easy to use as possible. For every machine we manufacture
We offer appropriate training courses. This can be done personally at your premises or in our showroom. We can even
Offer remote support via Zoom and TeamViewer. We also have a library of downloadable manuals and help guides for you to refer to, as well as a number of useful videos.

Our technical support team is also available to assist our customers should the need arise.

If you need your essential consumables or occasional spare parts, Intec holds huge stocks of them and can ship the same day you order.

Brochure & Manual

Intec LC330 EN

LC700 Product Information Center:

market position

The LC700 offers an unparalleled production advantage as the associated cutting file for each sheet design can be read and retrieved instantly! It can accommodate a multitude of jobs and cut them one after the other, in a seamless and uninterrupted flow.

Its “Dual Grip” feed system holds the media on BOTH sides of the cutting head while cutting, allowing it to cut closer to the media edges than most other cutters.

QR codes and SmartMarks are generated as part of the ColorCut Pro software plugin, which can be integrated into vector graphics created in Adobe ® Illustrator ® and Coreldraw ®.

key points

  • Cut labels in any shape digitally at up to 1060 mm/sec
  • The digital process means that costly tools are no longer required
  • Cut closer to the media edges with the Dual Grip feeding system
  • QR code/job library retrieves associated cut files – even for mixed job batch sessions
  • The automatic stacker/feeder holds up to 250 sheets
  • The paper stacker holds A3+, SRA3, A3, A4 and custom sizes for a maximum cutting length of 750 mm
  • Versatility built in – expandable to a complete roll-to-roll label cutting system with the optional LF700
  • SmartMark registration ensures incredible accuracy – enabled by the included ColorCut Pro software
  • Run jobs from your computer or from a USB drive.

specification

TECHNICAL DATA
LC700 sheet label cutting machine with automatic sheet feeder

Media formats – sheet feed: Maximum: 330 x 750 mm. Minimum: 150 x 190 mm
Media thickness: 0.14 mm (140 microns/140 g/m²) – 0.35 mm (350 microns/350 g/m²)
Automatic sheet capacity: Automatic single sheet feeder for up to 250 sheets
Maximum speed/maximum force: 1060 mm/s 750 gf
Registration system: Vision3 – High-resolution CCD vision system ARMS 8
Contour cutting: Full HPGL vector cutting, compatible with the SMARTMark optoelectric line sensor
Mountable tools: A single tool holder supports cutting blades (30°, 45° and 60°) and a pin calibration tool for automatic calibration
Cutting position accuracy: +/- 100 micrometers

Minimum PC specification: Adobe® Illustrator® CS6, CC2024 – CC2024 or CorelDRAW® X8, 2017 – 2024 Graphics Suite
ColorCut Pro 5 Plugin – PC: Adobe® Illustrator® CS6, CC2024 – CC2024 or CorelDRAW® X8, 2017 – 2024 Graphics Suite
ColorCut Pro 5 plugin – Mac client: Adobe Illustrator® CC 2022 – 2024. Mac operating systems: Big Sur to Sonoma
ColorCut Pro 5 Standalone – PC only: Jobserver – allows you to cut jobs created with the ColorCut Pro plugin mentioned above at any time

Power supply: 100–240 V AC, 50/60 Hz, 320 W, average 4.2 A
Weight (unpacked): 39kgs
Dimensions: 690 mm x 530 mm x 450 mm WHD

LC700 Pro Product Information Center:

market position

This incredibly versatile hybrid production system includes easy roll loading for lamination, digital contour cutting, die removal and roll cutting (optional). For added flexibility, it can also switch to sheet-fed mode!

Combining robust engineering with precise registration, the LCF700 Pro reads printed page marks and QR codes for instant retrieval of cutting jobs. Coupled with auto-tracking technology that continuously measures roll position deviation and dynamically and actively adjusts the roll mandrel axis to ensure complete cutting accuracy and finishing performance.

Finally, lamination provides bright, bold colors, additional shine and scratch resistance with the added benefit of increased UV stability

key points

  • The digital process means that costly tools are no longer required
  • Roll widths up to 330 mm wide and 350 mm diameter
  • Automatic tracking technology that continuously measures the rolling motion
    Position for dynamic adjustment of cutting accuracy
  • Linear cutting speeds up to 10.5 m/min, depending on the label
    design and roll width*
  • QR code/job library retrieves associated cutting files – also for
    mixed job batch sessions
  • SmartMark registration delivers incredible accuracy
  • Laminate rolls for surface protection and lightfastness
  • Convert rolls with final slitting – up to 5 rolls
  • Run jobs from your computer or USB drive

specification

TECHNICAL DATA
LC700 sheet label cutting machine with automatic sheet feeder

Media formats – sheet feed: Maximum: 330 x 750 mm. Minimum: 150 x 190 mm
Media thickness: 0.14 mm (140 microns/140 g/m²) – 0.35 mm (350 microns/350 g/m²)
Automatic sheet capacity: Automatic single sheet feeder for up to 250 sheets
Maximum speed/maximum force: 1060 mm/s 750 gf
Registration system: Vision3 – High-resolution CCD vision system ARMS 8
Contour cutting: Full HPGL vector cutting, compatible with the SMARTMark optoelectric line sensor
Mountable tools: A single tool holder supports cutting blades (30°, 45° and 60°) and a pin calibration tool for automatic calibration
Cutting position accuracy: +/- 100 micrometers

Minimum PC specification: Adobe® Illustrator® CS6, CC2024 – CC2024 or CorelDRAW® X8, 2017 – 2024 Graphics Suite
ColorCut Pro 5 Plugin – PC: Adobe® Illustrator® CS6, CC2024 – CC2024 or CorelDRAW® X8, 2017 – 2024 Graphics Suite
ColorCut Pro 5 plugin – Mac client: Adobe Illustrator® CC 2022 – 2024. Mac operating systems: Big Sur to Sonoma
ColorCut Pro 5 Standalone – PC only: Jobserver – allows you to cut jobs created with the ColorCut Pro plugin mentioned above at any time

Power supply: 100–240 V AC, 50/60 Hz, 320 W, average 4.2 A
Weight (unpacked): 39kgs
Dimensions: 690 mm x 530 mm x 450 mm WHD

TECHNICAL DATA
LCF700 Pro roll label cutting system
(Consisting of LC700 cutter and LF700 frame)

Maximum label length: 420mm (16.53”)
Mandrel core diameter: 76mm (3”)
Maximum input and output roller diameter: 350mm (13.78”)
Web width: Up to 330 mm (12.99 inches)
Registration system: 2 markings with QR code
Test cut function: Available
Cutting: Up to 6 knife slots – included
Lamination: Inline lamination if required
Winding mandrels: First – matrix removal
Weight (unpacked): 290kgs
Dimensions: 1,600 mm x 740 mm x 1205 mm WHD
Power supply: 110–240 V AC, 50/60 Hz, 320 W, 4.2 A

SC6500 Product Information Center:

market position

Automatic sheet cutting and creasing for lightweight carton, packaging, POS and kiss-cut sheet labels – in a compact and mobile device.

Aimed at users seeking an affordable, compact, high-capacity cutting solution, the SC6500 combines highly reliable feeding with an instant job retrieval system and flawless high-speed cutting and creasing for completely unattended production.

key points

Digitally cut any sheet card item – with SmartTag retention – on up to 350 micron media

Kiss-cut sheet labels

Cutting speeds up to 1060 mm/sec

Cutting and creasing force up to 750 g for an excellent finish

The digital process means no more costly matrices or wasted waiting times

The automatic feeder stacks up to 1,000 sheets of 80 g/m². Up to 340 mm (13.38″) x 710 mm (27.9″) and custom sizes – with self-centering function and Airbladelite© separation

ColorCut Pro – Production Studio software included

QR Code/Job Library retrieves associated cut files – even for mixed job batch sessions or rotated sheets

SmartMark registration offers incredible accuracy – activated via the included ColorCut Pro software

overview

The SC6500 combines the cutting and folding capabilities of flatbed technology with two automatic sheet-feeding tools – all in a precision-engineered, compact, freestanding unit with an easy-to-maneuver, ergonomic and space-saving design.

With an average power consumption of less than 100W, the SC6500 is also possibly the most energy efficient and cost-saving solution in its class. The ability to operate the SC6500 via the 7" touch panel in HELD MODE with the NO WIRES feature means that this highly mobile device can easily be accommodated in any print shop or manufacturing company that needs to cut labels or punch cards.

Full standalone operation – even with a stack of mixed jobs

• In today's hectic printing environments, the SC3's 8th generation Vision6500 CCD camera offers an unparalleled production advantage with its ability to read and instantly retrieve cut files for each sheet on the fly! It can accept a mixed batch of jobs and cut them one after the other in a seamless and uninterrupted flow.

• Its dual “Grip and Drive” feeding system holds the media on both sides of the cutting head during cutting, allowing it to cut closer to the media edges than most other types of cut sheet cutters.

• The revolutionary cutting strip, based on the superior cutting mats used in Intec flatbeds, is designed to provide the optimal surface for both cut-through, creasing and kiss-cut work, suitable for both production tools. Since the cut sheet is in constant high-speed motion, minimal SmartTags remain in the cut lines to hold the object in the sheet - leaving a neat and manageable stack of finished, complete sheets in the collection bin.

• High capacity automatic feeder works in conjunction with air blade separation and auto jog function to present each sheet perfectly to the cutter every time.

• ColorCut Pro Production Studio software comes standard, providing remarkable digital productivity for both designers and machine operators.

specification

Dealing with media:
A4 (210 x 297 mm), A3 (297 x 420 mm), SRA3 (330 x 485 mm), A3+ (320 x 480 mm) and custom sizes

Custom sized media:
 Media width (min.-max.): 180 mm x 340 mm / Media length (min.-max.): 279 mm x 710 mm

Professional recognition:
 Advanced QR code technology for instant file recognition and registration

Stand: included

Media storage: included

Media thickness: 140 microns (0.14 mm) – 350 microns (0.35 mm)

Automatic sheet capacity: 1,000 sheets

CUTTING CONTROL

Mountable tools: Dual tool functionality – 4 tools included as standard: blade holder, dual grooving tool and pin calibration tool

Force/Pressure: Up to 750 g are delivered in 190 steps, which are programmable via the Intec ColorCut Pro cutting software

Maximum speed: up to 1060 mm/second

REGISTRATION CONTROL & JOB MANAGEMENT:

Registration system: Vision3 – High-resolution CCD image processing system reads the registration marks on the media and compares the position with the original digital file. Automatic adjustment of cutting lines to correct scaling or skew differences

Cutting position accuracy: +/- 100 micrometers

Automatic job recognition: Instant retrieval of cutting files, supported by QR code job recognition in conjunction with ColorCut Pro 5 software (included)

POWER REQUIREMENT

Power supply: 100–240 V, 50/60 Hz, 100 W average (320 W peak)
Approvals: Complies with CE and RoHs directive

GENERALLY

Weight: 136 kg
Dimensions: in use – 820 x 1300 x 1230 mm (32.3 x 51 x 48.43 inches)

software

ColorCut Pro production studio

ColorCut Pro is a standalone application with a plug-in that can be installed on remote computers anywhere in the workflow environment to perform contour cutting of paper cards and plastics. Intec supplies this with all ColorCut models to offer a complete turnkey solution.

For Creatives The application allows artists to create barcode or QR coded cut files with associated job numbers as an integral part of their design for instant job recognition and file retrieval.

For Print Finishers The ColorCut Job Library allows users to bring previously prepared cut files into their workflow without having to launch Adobe® Illustrator® or CorelDRAW®. This is typically used in a production environment remote from the design studio.

FAQs

What makes the SC6500 so different?

Intec listened to its customers who said there was a big gap between them; simple, cheap cutters (that couldn't crease and also struggled with problematic feeding) and these sophisticated cutting and creasing systems (that were way out of their budget).

Intec invested research and development into producing a highly affordable and high-performance device that meets these criteria – and then some!

Not only does the SC6500 have special tools for cutting and creasing, it also features a revolutionary new suction tape take-up system for error-free feeding – along with a huge automatic stacker with a 1,000-sheet capacity. Amazingly, the SC6500 weighs in at about the same price as those inferior, cheaper cutters…

What does automatic actually mean?

Good question: This means that once the job is set up, the SC6500 runs automatically – feeding and cutting – without an operator being present.

How does automation deal with mixed jobs?

Simple. Thanks to the sophisticated software that comes with the cutter, the cutter can easily handle a stack of mixed jobs. The Vision3 CCD video camera reads the QR code on each individual sheet that is presented to it and immediately retrieves the cutting file associated with that job. This is seamless and can be done in no time at all - even if the sheets are placed in the stacker rotated by 180°

Can this machine both score and cut cards?

Absolutely! The dual tool head carries both a cutting and a grooving tool that can apply up to 750g of force, which is leading in its class. Currently, no device in this class is known to offer this possibility.

Using the included ColorCut Pro software, the SC6500 can be set to cut, score, perforate and crease any desired shape - each with varying force and speed. In addition, these tasks can be set to be performed in the user's preferred order of execution.

Can the SC6500 also cut kiss-cut labels?

Yes, the SC6500 can produce excellent die-cutting for sheet labels and this is a major advantage of this automatic sheet die cutter.

How easy is the SC6500 to use?

All of our products are designed to be intuitive and as easy to use as possible. We offer relevant training for every machine we manufacture. This can be done in person at your site or in our showroom. We can even offer remote support via Zoom and TeamViewer. We also have a library of downloadable manuals and help guides for you to refer to, as well as a number of useful videos.

Our technical support team is also available to our customers if needed.

If you need your essential consumables or occasional spare parts, Intec holds huge stocks of them and can ship the same day you order.

What support can I expect?

All of our products are designed to be intuitive and as easy to use as possible. We offer relevant training for every machine we manufacture. This can be done in person at your site or in our showroom. We can even offer remote support via Zoom and TeamViewer. We also have a library of downloadable manuals and help guides for you to refer to, as well as a number of useful videos.

Our technical support team is also available to assist our customers should the need arise.

If you need your essential consumables or occasional spare parts, Intec carries large stocks of them and can ship the same day you order.

Brochure & Manual

Intec SC6500 EN

SC7000 Product Information Center:

market position

Automatic sheet cutting and tangential creasing for light card, packaging,
POS and kiss-cut labels – in one compact and mobile device.

Aimed at users seeking an affordable, compact, high-capacity cutting solution, the SC7000 Pro-T combines highly reliable feeding with an instant job retrieval system and flawless high-speed cutting and tangential wheel grooving for completely unattended production.

key points

  • Smooth, deep grooving with the tangential grooving wheel
  • Digitally cut any sheet card item – with SmartTag retention – on up to 450 micron media
  • Kiss-cut sheet labels
  • Run jobs from USB drive or computer
  • Cutting speeds up to 1060 mm/sec
  • Folding force up to 2.5 kgf
  • cutting force up to 1 kgf
  • The digital process means no more costly matrices or wasted waiting times
  • The
    automatic feeder stacks up to 1,000 sheets of 80 g/m². Up to 340
    mm (13.38″) x 710 mm (27.9″) and custom sizes – with
    Self-centering function and Airbladelite© separation
  • ColorCut Pro – Production Studio software included
  • QR Code/Job Library retrieves associated cut files – even for mixed job batch sessions or rotated sheets
  • SmartMark registration offers incredible accuracy – activated via the included ColorCut Pro software
  • Available in wide format for B2+ production

overview

The SC7000 Pro-T combines the cutting and creasing capabilities of two-tool flatbed technology with the automatic sheet feeding feature – all in a precision-engineered, compact, freestanding unit with an easy-to-maneuver, ergonomic,
space-saving design.

With an average power consumption of less than 100W, the SC7000 Pro-T is also possibly the most energy efficient and cost-effective solution in its class.
The ability to operate the SC7000 Pro-T via the 7" touch panel in HELD MODE, with NO WIRES functionality, means that this highly mobile device can easily be accommodated in any print shop or manufacturing company that needs to cut labels or punch cards.

Full standalone operation – even with a stack of mixed jobs

  • Unattended operation. In today's busy printing environments, the SC3 Pro-T's 9th generation Vision7000 CCD camera provides
    unprecedented production advantage as they provide cutting files for each sheet
    can be read in no time and recalled immediately! It can have a mixed
    Accept stacks of orders and process them one by one in a
    seamless and uninterrupted flow.
  • Its dual “Grip and Drive” feed system keeps the media on
    both sides of the cutting head so that it is closer to the media edges
    than most other types of cut sheet cutters.
  • The revolutionary cutting strip that is used on the superior cutting mats
    the Intec flatbed printer is based, was developed to ensure the optimal
    surface for both cutting, creasing and kiss-cut work
    and to be suitable for both production tools. Since
    the single sheet is constantly moving at high speed, only
    minimal SmartTags in the cutting lines to keep the article in the sheet
    keep – this way you keep a neat and manageable stack of finished,
    complete sheets in the collection tray.
  • High capacity automatic feeder
    works with the air knife separation and the automatic jog function
    together to make every sheet perfect for the cutting plotter at all times
    present.
  • ColorCut Pro Production Studio software
    is supplied as standard and offers both the designer and
    also offers the machine operator remarkable digital productivity.

specification

Dealing with media:
SC7000 Pro-T
 A4 (210 x 297 mm), A3 (297 x 420 mm), A3+ (330 x 485 mm), SRA3 (320 x 450 mm) and custom sizes
SC7000 Pro-T XL
Up to sheet size B2+

Custom sized media:
 Media width (min.-max.): 180 mm x 340 mm / Media length (min.-max.): 279 mm x 710 mm

Professional recognition:
Advanced QR code technology for instant file recognition and registration

Stand: included

Media storage: included

Media thickness: 140 microns (0.14 mm) – 450 microns (0.45 mm)

Automatic sheet capacity: Up to 1,000 sheets (based on 80 g/m²) 15kg | XL 30kg

CUTTING CONTROL

Mountable tools: Dual tool functionality – 3 tools included as standard:

Blade holder – holds cutting blades; 30º, 45º or 60º for different media types
Creasing tool – tangential wheel creasing tool, suitable for ≤450 micron cards
Calibration pen – pen, plotting pen for automatic calibration.

Folding force/pressure: Up to 2,500 gf, delivered in 190 steps, programmable via Intec ColorCut Pro cutting software

Cutting force/pressure: Up to 1,000 gf, delivered in 190 steps, programmable via Intec ColorCut Pro cutting software

Maximum speed: up to 1060 mm/second

REGISTRATION CONTROL & JOB MANAGEMENT:

Registration system: Vision3
– High-resolution CCD image processing system reads the registration marks
on the medium and compares the position with the original
digital file. Automatically adjust cutting lines to correct
of scaling or skew differences

Cutting position accuracy: +/- 100 micrometers

Automatic job recognition:
Instant retrieval of cutting files, supported by
QR code job recognition in conjunction with the ColorCut Pro 5 software
(included in delivery)

POWER REQUIREMENT
Power supply: 100–240 V, 50/60 Hz, 100 W average (320 W peak)
Approvals: Complies with CE and RoHs directive

GENERALLY

Weight: 145kg | XL model 175 kg
Dimensions: – W833 × D882 × H1256 mm (32.75 x 34.68 x 49.44 inches) – XL model W1013 × D860 × H1256 mm
Max. required area in use: W833 x D1400 x H1256 mm (32.8 x 55.12 x 49.44 inches) - XL model W1013 × D1680 × H1256 mm (working depth includes front media tray and rear pull-out media tray)

Different or mixed professional recognition: Y

software

ColorCut Pro production studio

ColorCut Pro is a standalone application with a plug-in that can be installed on remote computers anywhere in the workflow environment to perform contour cutting of paper cards and plastics. Intec supplies this with all ColorCut models to offer a complete turnkey solution.

For Creatives The application allows artists to create barcode or QR coded cut files with associated job numbers as an integral part of their design for instant job recognition and file retrieval.

For Print Finishers The ColorCut Job Library allows users to bring previously prepared cut files into their workflow without having to launch Adobe® Illustrator® or CorelDRAW®. This is typically used in a production environment remote from the design studio.

FAQs

What makes the SC7000 Pro-T different?

Intec listened to its customers who said there was a big gap between them; simple, cheap cutters (that couldn't crease and also had trouble feeding) and these sophisticated cutters and creasing systems (that were way out of their budget).

Intec invested research and development into producing a highly affordable and high-performance device that meets these criteria – and then some!

Not only does the SC7000 Pro-T have special tools for cutting and creasing, and it features a revolutionary new suction tape take-up system for error-free feeding – along with a huge automatic stacker with a capacity of 1,000 sheets. Amazingly, the SC6500 weighs about the same price as the inferior,
cheaper cutting plotters …

What does automatic actually mean?

Good question: This means that once the job is set up, the SC7000 Pro runs automatically – feeding and cutting – without the presence of an operator.

How does automation deal with mixed jobs?

Simple. Thanks to the sophisticated software supplied with the cutter, the cutter can easily handle a batch of mixed jobs. The Vision3 CCD video camera reads the QR code on each individual sheet that is presented to it and immediately retrieves the cutting file associated with that job. This is done seamlessly and in
In no time at all – even if the sheets are turned 180° and placed in the stacker

Will this machine fold card as well as cut?

Definitely! The dual tool head carries both a cutting and a creasing tool that can apply up to 2,500g of force when folding and 1,000g of force when cutting. Currently, no device in this class is known to offer this feature.

Using the included ColorCut Pro software, the SC7000 Pro-T can be set to cut, score, perforate and scribe any desired shape – each with varying levels of force and speed. In addition, these tasks can be set to be performed in the user’s preferred
execution order.

Does the SC7000 Pro-T also work with kiss-cut labels?

Yes, the SC7000 Pro-T enables excellent punching for oenolabels, and that is
a major advantage of this automatic sheet punch.
However, you may be more interested in Color Cut LC600 , a sheet label cutting plotter designed specifically for this purpose.

How easy is the SC7000 Pro-T to use?

All products are designed to be intuitive and as easy to use as possible. We offer relevant training for every machine we manufacture. This can be done in person at your premises or in our showroom. We can even offer remote support via Zoom and TeamViewer. We also have a library of downloadable manuals and help guides for you to refer to, as well as a number of useful videos.

Our technical support team is also available to our customers if needed.

If you need your essential consumables or occasional spare parts, Intec holds huge stocks of them and can ship the same day you order.

What support can I expect?

All products are designed to be intuitive and as easy to use as possible. We offer training for every machine we manufacture. This can be done in person at your site or in our showroom. We can even offer remote support via Zoom and TeamViewer. We also have a library of downloadable user manuals and help guides where you can
that you can refer to, as well as a number of useful videos.

Our technical support team is also available to assist our customers should the need arise.

If you need your essential consumables or occasional spare parts, Intec carries large stocks of them and can ship the same day you order.

Brochure & Manual

Intec SC7000-EN

FB9000 Product Information Center:

market position

The new FB9000PRO automatic digital die-cutting flatbed cutter is a premium turnkey solution for unattended and automated stacking, feeding and cutting of packaging or sheet labels in absolutely any shape and is aimed at high production environments and short run mixed job output.

key points

Digital die cutter for on-demand die cutting

dual
Tool head for clean cutting, sharp grooving, creasing and
Perforating – with up to 1.2 kg cutting force and 1.5 kg creasing force

Cut up to 1,000 micron media

Automatic sheet feeder for high productivity

High-capacity stacker holds up to 25 kg (2,000 sheets) of printed media

Adjustable pneumatic suction media intake

Synchronized high-speed feed

Continuous belt cutting table for high

PRODUCTIVITY

Powered by ColorCut Pro software

QR-coded job library for retrieving files

Optical camera for precise registration

sheet feed in portrait and landscape format

Mixed jobs can be loaded and cut

Media selection – cut your project from thick FB cardstock or cut label media

Easy to set up and use, no special operator/prior knowledge or expertise required

Optional ColorCut Pro Server Station

overview

Creative on-demand digital print finishing, prototyping and production for packaging and POS.

Intec’s advanced, fully automated digital die cutter offers lightning-fast performance, unparalleled media control and sophisticated
– but user-friendly – ​​production functions.

This premium construction system features a high-performance quick feeder,
paired with a large format endless belt cutting table and a
Media collection tray, which together provide synchronized automatic feeding/loading and ejection for exceptional productivity.

specification

SPECIFICATION

Maximum media area:
(automatic sheet feeder) 480 mm x 720 mm
(manual placement) 550 mm x 850 mm (no brand scan)

Effective cutting area:
 (automatic sheet feeder) 480 mm x 720 mm
(manual placement) 495 mm x 735 mm

registration system:
 high-speed CCD camera
– Vision3 registration system with live video feed and
advanced 8th generation ARMS (Automatic Registration Mark System)
generation

Professional recognition:
 Advanced QR code technology for instant file recognition and registration

Stand: integral and included

Media holding method: 2-zone vacuum bed (750W high-speed vacuum pump included as standard)

Sound insulation for pump: yes

Acoustic properties: Soundproof cover/housing for vacuum pump, silencer for suction of vacuum pump

CUTTING CONTROL:

Mountable tools:
dual tool functionality, so that any 2 tools can be used simultaneously
can be used – 3 tools included in delivery:
blade holder, creasing tool & pin calibration tool

Force/Pressure:
Cutting force: Up to 1.2kg
Folding force: Up to 1.5 kg

DIMENSIONS:

Unpacked: Length: 1,000 mm (39.37″) Width: 2,500 mm (98.42″) Depth: 1,600 mm (62.99″)

software

ColorCut Pro production studio

ColorCut Pro is a standalone application with a plug-in that can be installed on remote computers anywhere in the workflow environment to perform contour cutting of paper cards and plastics. Intec supplies this with all ColorCut models to offer a complete turnkey solution.

For Creatives The application allows artists to create barcode or QR coded cut files with associated job numbers as an integral part of their design for instant job recognition and file retrieval.

For Print Finishers The ColorCut Job Library allows users to bring previously prepared cut files into their workflow without having to launch Adobe® Illustrator® or CorelDRAW®. This is typically used in a production environment remote from the design studio.

FAQs

What does “AUTOMATED” actually mean?

Good question: Since the FB9000PRO is a digital cutting table coupled with an auto-feed stacking unit, the entire process can be set up to run automatically without an operator being present.

So how does automation deal with MIXED JOBS?

The FB9000PRO would be perfect for this kind of work. Thanks to the sophisticated software that comes with the cutter, the cutter can easily handle a batch of mixed jobs. The Vision3 CCD video camera reads the QR code on each
individual sheet that is presented to it and immediately calls up the cutting file linked to this order. This is done seamlessly and in no time at all - even if the sheets are placed in the stacker rotated by 180°

Can this machine both crumple and cut the card?

Absolutely! The dual tool head carries both a cutting and a creasing tool that can apply up to a class-leading 1 kg of force. Using the included ColorCut Pro software, the FB9000 can be set to cut, creasing, perforate and crease any shape required – each with different force and
speed. In addition, these tasks can be set to run in the user's preferred execution order.

Does the FB9000PRO have KISS-CUT labels and cut-through cards?

Yes, the FB9000PRO can produce excellent kiss cutting for sheet labels and this is a major advantage of this automated
Packaging and POS cutting machine. However, you may be more interested in the ColorCut LC600, a dedicated sheet label cutter designed specifically for this purpose.

How easy is the FB9000 to use?

All our products are designed to be intuitive and as easy to use as possible. For every machine we manufacture
We offer appropriate training courses. This can be held in person at your
on-site or in our showroom. We can even offer remote support via Zoom and TeamViewer. We also have a library of downloadable manuals and help guides for you to refer to, as well as a number of useful videos.

Our technical support team is also available to assist our customers should the need arise.

If you need your essential consumables or occasional spare parts, Intec holds huge stocks of them and can ship the same day you order.

What support can I expect?

All our products are designed to be intuitive and as easy to use as possible. We offer appropriate training for each machine we manufacture. This can be done in person at your site or in our showroom. We can even offer remote support via Zoom and TeamViewer. We also have a
Library of downloadable manuals and help guides for you to refer to, as well as a number of useful videos.

Our technical support team is also available to assist our customers should the need arise.

If you need your essential consumables or occasional spare parts, Intec holds huge stocks of them and can ship the same day you order.

brochure

FB9000PRO-UK-web-161222-1.pdf

Server Station Product Information Center:

market position

Ideal for users with multiple print finishing operations and those looking to maximize the workflow of ColorCut cutting and creasing equipment. Advanced features of the Server Station platform enable greater functionality and increase productivity for graphic design studios and print finishing departments.

key points

The Server Station comes complete with pre-installed Windows® PC and ColorCut Pro software package with flat screen, mouse and keyboard


Production Studio 4 is the central operating software


Template Maker allows designers to create simple boxes and shaped items


Job Library Manager sophisticated job management with user-defined action assignment. The user license allows 2 additional user seats

overview

While the ColorCut Pro software supplied with every cutting plotter
can be used to easily cut files directly from the user's desktop, high productivity environments will certainly reap the benefits of automation that the servers
Station offers! Intec ColorCut Server Stations are the central hub of ColorCut's cutting ecosystem - they connect to any networked graphic designer system and integrate into the print/finishing room for seamless workflow automation.
Together with its innovative features, the Server Station offers a level playing field for all connected devices – thereby
the headaches are eliminated, which are often caused by different
Operating systems and conflicting program versions in a network
And less need to focus on the
Support from the dealer. By outsourcing final
Orders from the designers' computers and into the production workflow
The Server Station enables the design studio to use its creative
tasks while the print production staff completes the process
the order trimming without further impact on the design
Studio time or physical movements can be taken over. With a ColorCut
Per Server Station, networked design studios and
Print finishing zones can be operated independently of each other in their
premises.
This level of contactless
Automation also helps progressive organizations to optimize
to achieve contactless processes that are recognized by many QC accreditations
be required.

software

ColorCut Pro production studio

ColorCut Pro is a standalone application with a plug-in that can be installed on remote computers anywhere in the workflow environment to perform contour cutting of paper cards and plastics. Intec supplies this with all ColorCut models to offer a complete turnkey solution.

For Creatives The application allows artists to create barcode or QR coded cut files with associated job numbers as an integral part of their design for instant job recognition and file retrieval.

For Print Finishers The ColorCut Job Library allows users to bring previously prepared cut files into their workflow without having to launch Adobe® Illustrator® or CorelDRAW®. This is typically used in a production environment remote from the design studio.

brochure

ColorCut-Pro-Server-Station-Brochure-210722-EN-web.pdf

SC6500

SC7000

FB9000 Pro
