Ricoh Ri 2000 - Accessories

Ricoh Ri 2000 - Accessories

€ 616,92
€ 616,92
Sale Prices on request
Shipping calculated at checkout.

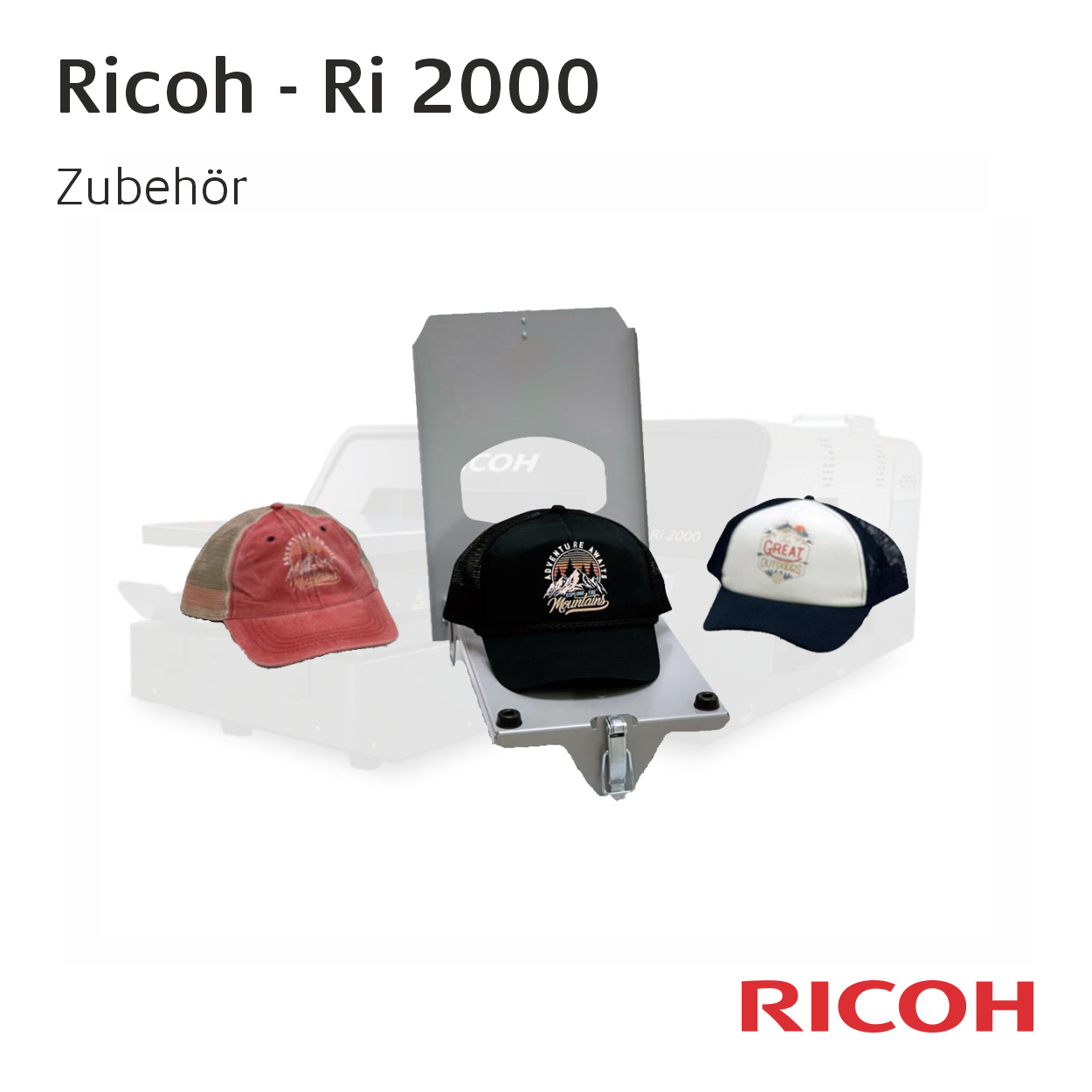

Ricoh Ri 2000 - Accessories

DTG PRINTERS FOR BUSINESS

Ricoh Ri 2000 direct-to-garment printer

Productive DTG printing system with automatic pallet height adjustment for companies looking to expand and ramp up production of new and improved product lines with beautifully printed, long-lasting garments.

342301 Ricoh L-Palette (Large Print Table Adapter) Type G1 (406 x 508mm)
342302 Ricoh M-Palette (Medium Print Table Adapter) Type G1 (320 x 457 mm)
342303 Ricoh S-Palette (Small Print Table Adapter) Type G1 (266 x 330 mm)

View full details

transfer presses

The RGF sells Stahls and Hotronix® transfer presses exclusively in bundles with Ricoh/Azon DTF and DTG printing systems

View all

6 main advantages of the RICOH Ri 2000

Powerful print heads

The Ricoh Ri 2000 is equipped with Ricoh's leading original printheads, designed for speed, precision and durability. The result is great, high-resolution print quality with minimal maintenance.

Double carriages for simultaneous white printing

Achieve top speeds with single-pass printing. One set of printheads applies the white underlay, followed by a second set that applies the color layer.

Intuitive touchscreen with intelligent warnings

Equipped with a large, full-color 7-inch touchscreen display with enhanced graphical interface, intuitive controls and an integrated interactive operator's manual that provides intelligent alerts and maintenance reminders.

Automatic head cleaning device

No more manual head cleaning. Replace your swabs and wipes, just attach the cleaning device, add cleaning solution and let the printer do the rest of the work for you.

Quickly replaceable magnetic printing plates

Changing the magnetic printing plates is a breeze. You can easily switch between different plate types and sizes, up to an extra-large 16" x 19.6" plate. The ultimate in apparel versatility with virtually no downtime between changeovers.

Automatic table height adjustment

Easily switch between substrates of different thicknesses up to 1.2". Laser-assisted table height adjustment speeds up your workflow and helps you optimize your prints by precisely positioning the table.

Fast. Simple. Built for business.

Take your digital textile business to the next level. The RICOH Ri 2000 offers exceptionally fast print speeds, simplified maintenance and convenient usability for direct-to-garment (DTG) and direct-to-film (DTF) printing.

Spend less time setting up prints and more time growing your business. The RICOH Ri 2000 has a robust feature set designed for power users and offers excellent value for money in its price range.

Lightning-fast speeds

Time is money. Increase your production or spend more time focusing on your business. The RICOH Ri 2000 prints full-color 25.4 x 20.3 cm (10 x 8 in.) graphics on light-colored clothing in less than 10 seconds. The same size graphic on dark-colored clothing takes less than a minute.

The speed test was performed in Super Speed ​​mode with a 25.4 x 20.3 cm (10 x 8 inch) graphic. The print was measured from the beginning to the end of the ink application. The loading and ejection of the platen roller requires an additional 15 seconds.

Goodbye, manual head cleaning!

The RICOH Ri 2000 includes an innovative print head cleaning jig that allows for quick and easy nozzle maintenance. Instead of fiddling around with swabs and cloths, all you have to do now is attach the jig, add cleaning solution and select "Jig Head Maintenance".

The printer does the rest of the work for you while you focus on your business.

Ready for immediate use with automatic maintenance

Thanks to automatic maintenance systems and advanced system monitoring, the RICOH Ri 2000 stays in an active state where it's ready to go - and is virtually guaranteed to deliver a perfect print whenever you're ready to use the machine. To make maintenance even easier, a built-in interactive operator guide provides intelligent alerts and notifications via the printer's industry-leading 7-inch color touchscreen display.

Automatic height adjustment and quick-change plates

With precise automatic height adjustment and magnetic quick-release plates, you'll spend less time setting up prints. Automatic table height adjustment speeds up your workflow and helps you optimize your prints by precisely positioning the print table.

The quick release plates in sizes up to extra-large 40.6 x 49.8 cm (16 x 19.6 inches) can be easily attached and removed from the device with virtually no downtime.

Proven quality and reliability

The robust RICOH Ri 2000, with its industrial-grade steel construction, is designed for performance and reliability. Proven components such as the device's print engine and high-performance RICOH GH 2220 printheads are built to Ricoh's world-class quality standards and thoroughly tested to deliver fast, accurate prints for years to come.

Technical data RICOH Ri 2000

Printhead technology: Ricoh piezoelectric drop-on-demand inkjet
Ink chambers/nozzles per chamber: 8 Ricoh printheads, 16 channels / 192 nozzles per channel
Printable area: Up to 40.6 cm x 49.8 cm with optional large platen
Typical print speeds: (10" x 8" graphic, LIGHT garment) Super Speed: 9 seconds, Fast: 15 seconds, Fine: 28 seconds, Super Fine: 58 seconds
Typical print speeds: (10″ x 8″ graphic, DARK garment) Super Speed: 54 seconds
Speed: 60 seconds, Fine: 74 seconds, Superfine: 97 seconds
Resolution settings Superfine: 1200×1200 dpi / 8 passes
Fine: 600×600 dpi / 4 passes
Speed: 600×600 dpi / 2 passes
Super speed: 600×300 dpi / 1 pass
Ink supply system: Advanced closed supply system; automatic ink circulation system for white channels
Printable substrates: 100% cotton and cotton blends; 100% light poly, up to 50/50 dark poly, wood and canvas. Hats, shoes and other expanded media options coming soon
Table height adjustment: Automatic table height adjustment up to a thickness of 30 mm
Maintenance functions: Precise ink monitoring, automatic ink care system, head cleaning device, power purge system to assist in filling and removing ink from the system
Operating environment: 15 C to 32 C, humidity 45-80% RH, non-condensing humidifier recommended
Dimensions: 52 cm H x 166 cm L x 86 cm W
Weight: 140kg
Curing temperatures and times - heat press (conveying times vary): 165 C, 90 seconds

Standard Palette Medium (included): 32 x 45.7 cm

Optional printing palettes; Large 40.6 x 49.8 cm, Small 26.6 x 33 cm
Additional palette options to accommodate shoes, caps/hats, sleeves and masks are available.

Scope of delivery:
DTG printer, Ricoh M-Palette (Medium-sized print table adapter type G1 (320 x 457 mm), One set of inks CMYKWW (6x 200 ml), Software RIP license ColorGATE Ricoh DTG Edition

Recommended graphics applications: Adobe Photoshop, Adobe Illustrator and CorelDRAW
Supported file types: TIFF, PNG, JPG, PDF, BMP
