Callisto Pigment Ink - Yellow

Callisto Pigment Ink - Yellow

€ 210,00
€ 210,00
Sale Prices on request
Shipping calculated at checkout.

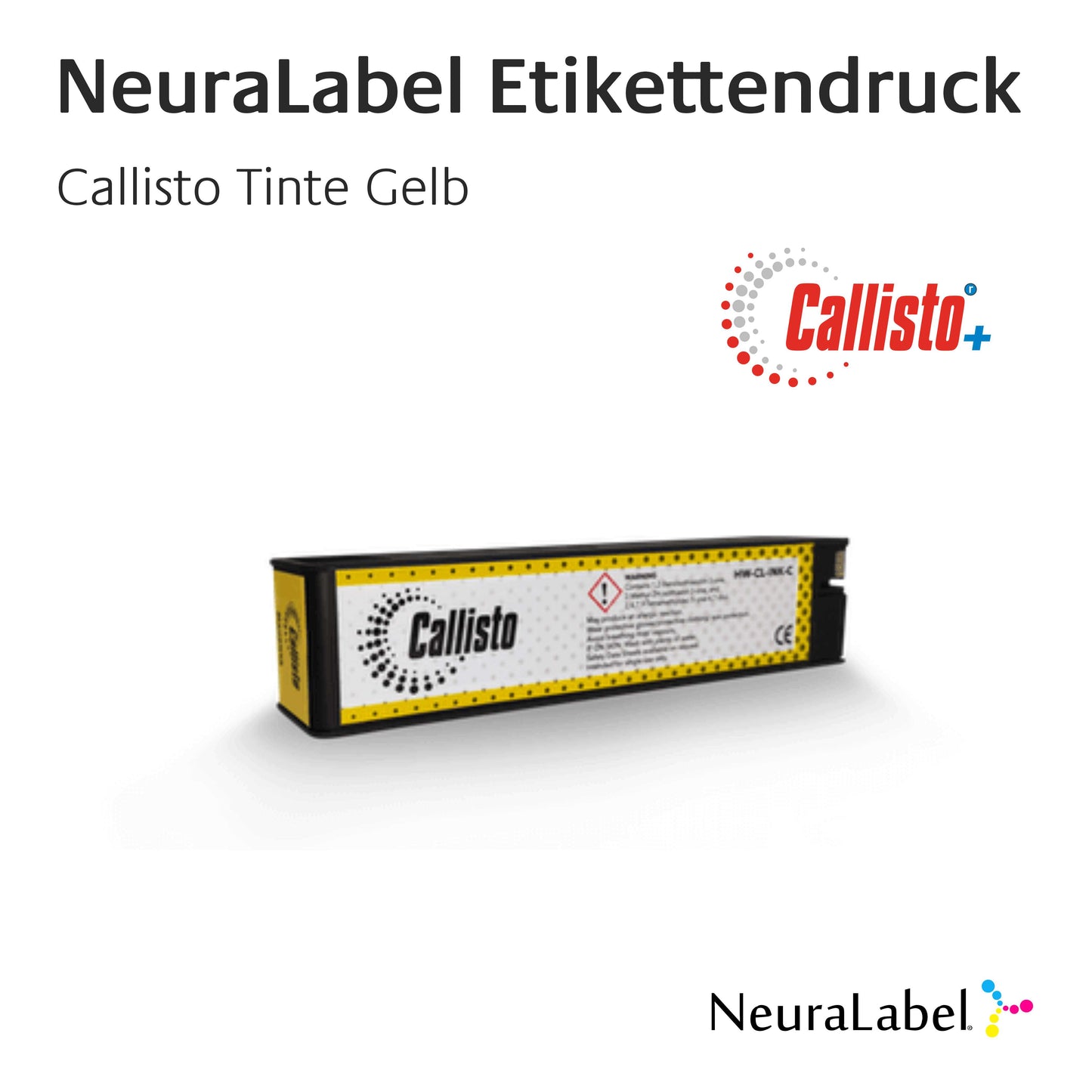

Neuralabel water-based pigment inks for Callisto

The pigment inks are specially designed for the HP Pagewide FI-1000 printing unit of the Callisto .

The pigment-based prints are extremely resistant to moisture, abrasion, fading from UV rays and stress from fluctuating temperatures.

Available in Black (498ml), Cyan (237ml), Magenta (233ml) and Yellow (225ml)
View full details

Label printing and flexible packaging up to 320 mm (12.5") roll width - powered by HP FI-1000 Print Engine

On-demand label printing for product and industrial labels

The Callisto systems are the printers for printing color labels and flexible packaging - from roll to roll or fanfold printing.

With the Callisto systems you can print up to 297 mm (12") print width at print speeds of up to 18 inches per second or 27 m per minute. The Callisto is ideal for small and medium runs. Productivity is ensured by the high capacity of the ink cartridges.

Depending on the materials to be printed, GHS certification (BS5609) is available.

Loading the media is extremely easy. The system can process roll-to-roll or fanfold. A wide range of label materials can be printed, including paper, coated vinyls and plastics.

Label printing for industry, service providers and in-house users

The Callisto label printer is a versatile, high-speed color label printer for rapid production of on-demand labels in short and medium runs.

The Callisto is based on the high-performance, high-throughput HP PageWide™ technology. This makes the full-color label printer comparable to high-end digital printing systems on the market. And all at a very good price-performance ratio.

Easy to use: Thanks to the large, user-friendly 7-inch touchscreen and the integrated help options, the Callisto is easy to use. The robust and lightweight aluminum construction and the very compact footprint for the roll width of up to 30 cm (498 mm x 337 mm x 464 mm WxHxD printer without winding and unwinding) are further major advantages of the systems.

Maximum flexibility in label production: Print labels in any width between 1 and 12 inches on roll or continuous paper and create brilliant product labels for all types of small bottles and cartons to large containers. The water-resistant pigment inks offer high UV and moisture resistance.

Choose from a wide range of high-quality label media, including paper, vinyl and plastic, to provide a virtually unlimited number of combinations of label shapes, face materials and finishes for your product labels.

Commercial high-speed label printer

  • Prints durable full-color labels at 18 inches per second
  • Print various label formats from 1″ to 12″ wide with the same device
  • Print durable, water and chemical resistant labels with pigment inks
  • Produce impressive labels with a resolution of 2400 x 1200 dpi
  • Print labels on demand from Adobe, Nicelabel, Bartender and other programs
  • Produce 16,000 - 20,000 standard pages per color with extra-high-yield ink cartridges.

KEY FEATURES

  • On-demand direct printing for labels and packaging
  • HP PagwideTM technology with up to 2,400 x 1,200 dpi resolution
  • Closed cartridge system with water-based pigment inks
  • Fast and high throughput up to 27 m/minute
  • Up to 305 mm material width (optional 320 mm)
  • print width from 25.4 mm to 297 mm
  • print length from 25.4 mm to 91.4 mm
  • Very short set-up times
  • Robust industrial design
  • Media-dependent waterproof prints and GHS certification
  • vacuum material guide
  • printing on continuous material
  • Printing on pre-punched media (die-cut)
  • Borderless printing on pre-punched media (kiss-cut)
  • Automatic gap or black mark detection
  • Optional: Banner printing function without gap
  • Optional: Inline unwinder and inline rewinder (up to 8" / 20 cm roll diameter)
  • Optional: Industrial frame with integrated unwinder and rewinder for large rolls (up to 50 cm roll diameter)
  • Optional: Software RIP and Color Management
  • HP Authorized Support

TECHNICAL DATA

TECHNOLOGY

Printing technology - HP Pagewide - Thermal injector technology with fixed print head

Colors - 4 colors: cyan, magenta, yellow and black

Ink technology - water-based pigment inks

Cartridges - Single cartridges cyan/magenta/yellow (225 ml each for up to 16,000 A4*), single cartridge black (495 ml for up to 35,000 A4*)

Control - Microsoft® Windows 10 and newer

Control panel: 7" color LCD

Connectivity: Gigabit Ethernet

Automatic paper cutter - No

PRESSURE

Print speed - Up to 45 cm/s (18"/s)

Print resolution - 2,400 x 1,200 dpi

Print width - 25.4 mm – 297 mm

Print length - 19 mm – 914 mm

Processing options - roll printing or Leporello (fanfold)

SUPPORTED MEDIA

Types - Compatible with a range of materials from open-pore and coated papers, polyester, polypropylene and vinyl

Print width - 25.4 mm – 297.2 mm

Media width - 25.4 mm–305 mm (Optional 320 mm)

Roll diameter - Standard 20 cm (8") outer diameter with 76 mm (3") core Optional 30 cm/50 cm outer diameter with 76 mm (3") core

Label types - Die-cut labels, labels with black marks, continuous materials - 10 mm gap for borderless labels, 4 mm in webpress function, banner printing function without gap (optional)

GENERAL

Interface - Gigabit network, no USB

Automatic paper cutter - No

Power supply - Internal power supply

Operating voltage ~ 240 V, 50 ~ 60 Hz

Temperature/Humidity - 15 to 32oC at RH 20-80%

Weight - 25 kg (Callisto printer only without unwinder and rewinder)

Warranty - 1 year spare parts warranty with "Bring in"

Printhead unit excluded from warranty

Maintenance contracts are offered

SCOPE OF DELIVERY

Printing system, software, power cable, (ink cartridges not included)*)

Inks: DIN A4 yield according to ISO The described

Product features and specifications are subject to change without notice.
