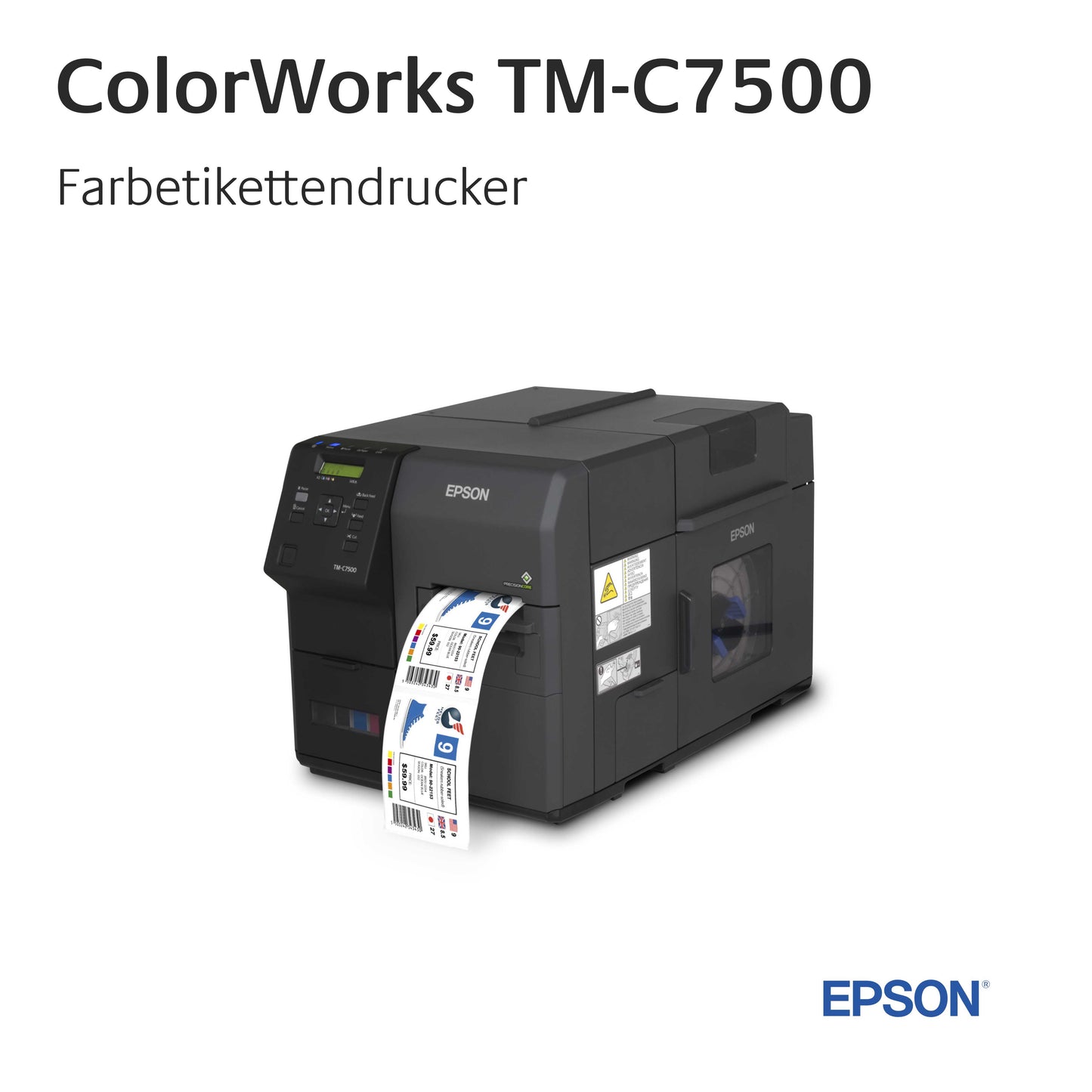

ColorWorks TM-C7500

ColorWorks TM-C7500

€ 7.381,00
€ 7.381,00
Sale Prices on request
Shipping calculated at checkout.

industrial color label printer

  • High reliability and long life cycle PrecisionCore printhead ensures consistent results and a long printer life cycle
  • Save time and money Optimize label production by printing your color labels as needed
  • High speed and high print quality Print speeds of up to 300 mm/sec. at an image resolution of 600 x 1200 dpi
  • Low maintenance, low downtime Permanent print head and NVT for self-maintenance
  • All-round carefree Comprehensive CoverPlus options
  • Easy integration New ESC/Label programming language for integration into almost any operating system

Technical data

Technology
Printing method: PrecisionCore MicroTFP line printer
Nozzle configuration: 600 nozzles per color
Category: Industrial label color printers

Pressure
Print speed: Max. 300 mm/sec at 600 x 1,200 dpi (print width 108 mm)
Print resolution: 600 x 1,200 dpi<
Print width: max. 108 mm
Print emulation: ESC/Label, ZPL II (emulation)

Supported Media
Formats: Roll (outer diameter 8 inches)
Type: Die-cut label, Black marking label

General
Automatic paper cutter: Yes built-in
Power supply: Internal
Power consumption: Printing: approx. 86 W, in standby: approx. 4 W
Temperature/Humidity: Printing: 5~ 35 °C ( 20~ 80 % RH)
Dimensions: 392 x 598 x 397 mm (width x depth x height)
Weight: 36.7 kg

Miscellaneous
Warranty: 12 months on-site service

scope of delivery
Printer, power cable, separate cartridges, label paper roll, maintenance box, USB cable, software (CD

Recommended media
Plain paper, plain paper labels, matte paper, matte paper labels, banderole (for wristbands), textured paper, synthetic labels

Other supported media
Glossy paper, glossy paper labels, glossy foil labels, high gloss paper labels

Product manuals List of compatible software

View full details

ColorWorks TM-C7500 series

  • Reliable and consistent print results

    The C7500 helps manufacturers produce consistent, high-quality labels in-house and on-demand. The printer features the new PrecisionCore printhead to produce reliable, high-quality print results. Our unique automatic nozzle check detects and corrects missing dots, helping to prevent misprints and producing consistent prints.

  • High speeds

    Quickly produce a variety of high-quality labels, such as food and packaging labels, EU energy efficiency labels and GHS labels. With print speeds of up to 300mm/second, you can now print full-colour labels at the same speed as some traditional black and white thermal printers.

  • Cost-efficient

    Printing labels on demand helps you avoid the costs associated with pre-printing, such as label surpluses and label stock storage. Using high-volume, individual cartridges means you only need to replace the ink you use, further reducing the cost per print. Permanent printheads provide significant cost savings, as the key components only need to be replaced after 500km of printed paper.

  • Low maintenance and easy to use

    The device is extremely easy to set up with its LCD control panel. Our latest printer command set ESC/Label allows the printer to be integrated into almost any operating system. The device also comes with many software tools to assist with printer deployment. On top of that, the NVT helps prevent clogged nozzles.

Difference between Epson ColorWorks TM-C7500 & TM-C7500G

The main difference between the Epson TM-C7500 and the Epson TM-C7500G is that the Epson TM-C7500 is a matte label printer while the Epson TM-C7500G is a glossy label printer.

The only difference between these two printers is the Epson ink. The TM-C7500 comes with Epson's standard pigment-based ink for printing GHS BS5609 compliant labels (labels that must withstand harsh environments when exposed to weather, water or chemicals). To produce these highly durable labels, the TM-C7500 is called the matte version because all the media used has a matte finish, such as matte paper labels, matte polypropylene labels or matte chemical labels for GHS BS5609 labels.

The Epson TM-C7500G features a specially modified Epson pigment ink designed for printing on glossy surfaces such as glossy paper, glossy polypropylene or glossy clear labels. Since Epson's standard pigment inks are designed for matte surfaces, they do not adhere well to glossy surfaces. Therefore, Epson has introduced the TM-C7500G with modified inks for glossy labels. Glossy labels are very popular for printing specialty labels for food and bakery products.
