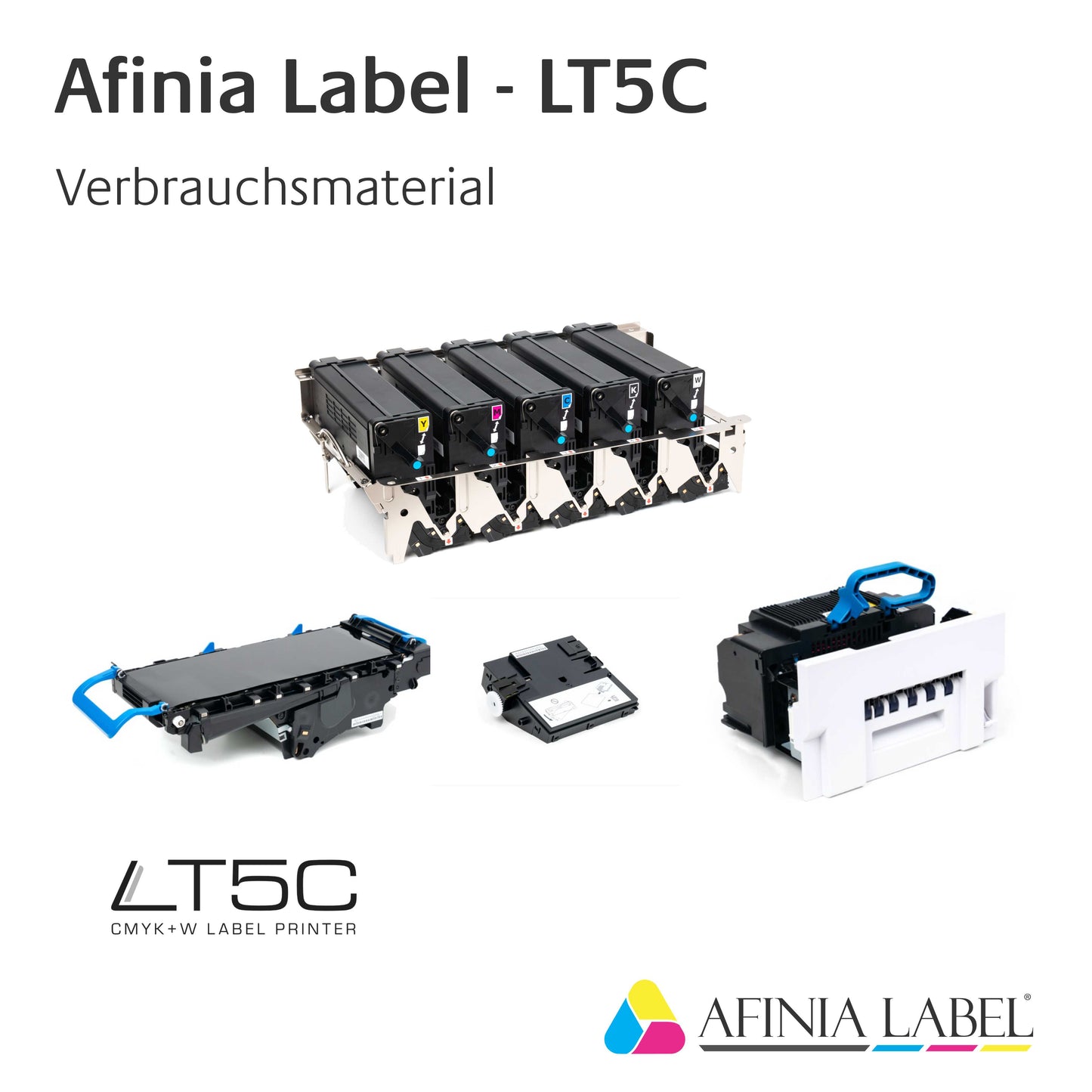

Afinia Label LT5C consumables

Afinia Label LT5C consumables

€ 190,00
€ 190,00
Sale Prices on request
Shipping calculated at checkout.
smoking material

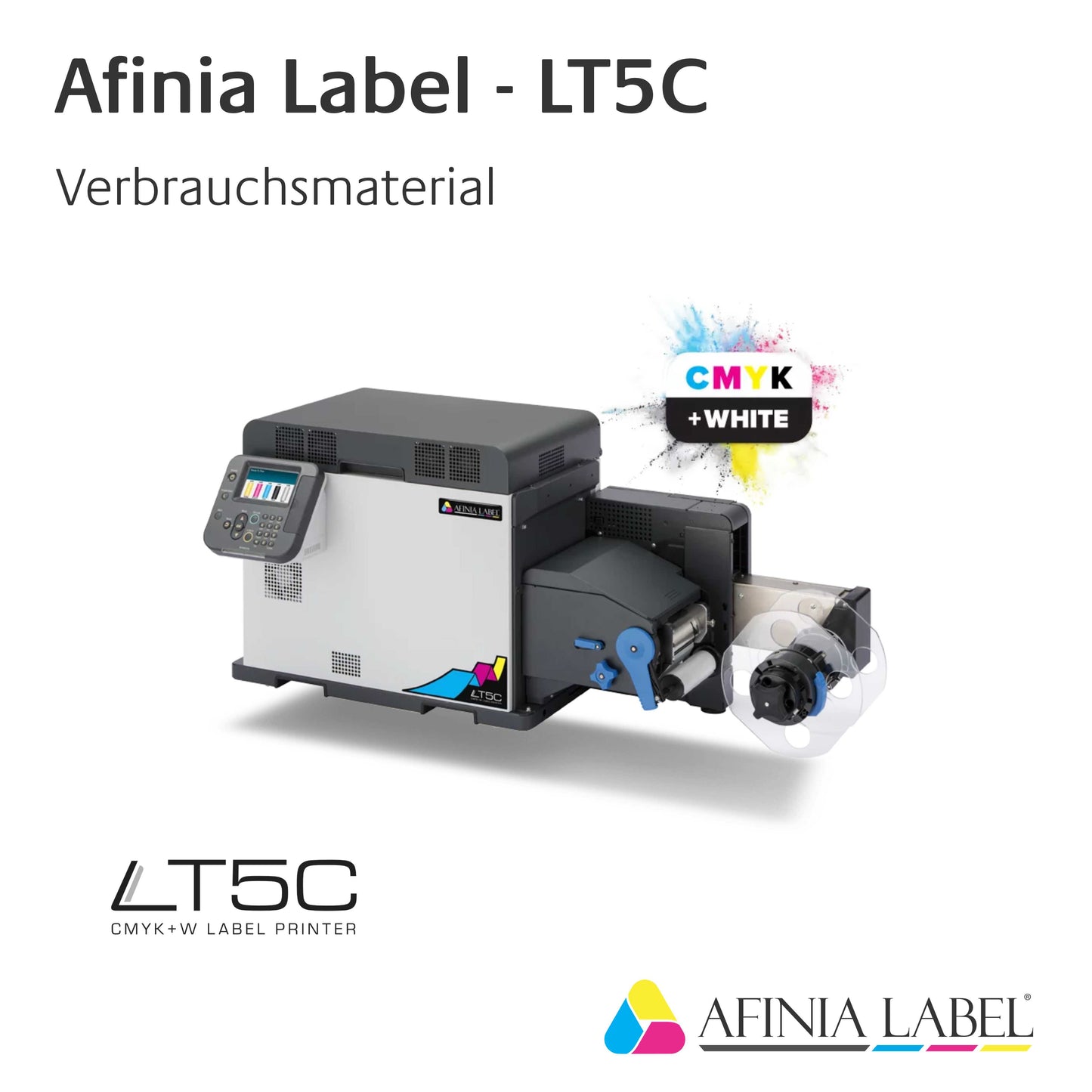

LT5C Label Printer CMYK + White

Printing with white on standard or special materials

The LT5C CMYK + White label printer offers professional five-color printing performance for a wide range of applications. Whether it's durable labels, freezer and cold storage labels, food and beverage labels, or household goods, the LT5C from Afinia Label can do it all and more.

  • Printing with White
  • Suitable for films and special media
  • LED dry toner technology
  • Completely waterproof pressure resistance

View full details

The essentials:

Print in CMYK + White on a variety of label media to
to produce unique and professional labels that are waterproof
and suitable for the most demanding environments.

LT5C Details

Fifth color white toner

The fifth color enables white printing, so bright designs can be easily printed on transparent and dark materials. This feature allows users to reach a larger market segment and cover a variety of applications that other label printers simply cannot support.

LT5C Details

Digital LED printing technology and substrate functions

The low fixing temperature gives the LT5C an unrivalled
Material compatibility – especially when processing heat-sensitive plastics and films. This LED-based
Technology allows the use of a range of substrates that other label printers simply cannot handle. Dry toner technology enables the use of uncoated and flood coated materials, providing another benefit for operations looking to reduce their overall cost per label.

LT5C Details

handling of label media

The LT5C accommodates rolls ranging from 1 inch to 5.1 inches wide and a maximum outside diameter of 8 inches, giving the operator the ability to print on a variety of label sizes.
Two types of sensors are used to detect the print position
- black mark and gap - so that both continuous and die-cut labels can be processed without any problems. The automatic cutter ensures a precise cut at the end of the printing process and ensures fast and efficient printing of one or more labels.

LT5C Details

usability

The LT5C is intuitive and easy to install, requiring minimal training or technical knowledge. The simple
Desktop configuration allows easy access to consumables and accessories. The different roll types can be quickly replaced and the consumables have high fill levels for long printing times. The integrated LCD color display (4.3 inch) and the practical paper guide make it easy to feed and print labels on demand.

LT5C Details

The perfect combination

Labels printed on continuous media with the LT5C can be cut to any size and shape using the DLF-140s tabletop digital label finisher. This is all done digitally using a simple cutting shape that you insert into a PDF file - without expensive dies or tools, equipment or waiting times. The computer dictates where and how many labels to cut, so even small and short-term label jobs can be processed quickly and easily. Digital label finishing can also include lamination for aesthetic, tactile and long-lasting aspects.

label processing systems

RIP SOFTWARE AND WORKFLOW SYSTEM

Fiery CADlink Digital Factory 11 - OKI Pro Edition

OKI toner printer users in the personalization and customization industry want to simplify and streamline their design and production workflow, but need a wider range of printers to choose from.

The OKI Edition RIP software of Digital Factory v10 offers entry-level and professional Pro Series printers outstanding features in addition to comprehensive color management tools including automated white toner handling.

The C ADlink Digital Factory 11 - OKI Pro Edition is also suitable for the Afinia Label LT5C .

xxx
Technische Daten der Afinia LT5C

Druckmethode Digitales 5-LED-Vollfarb-Elektrophotographie-Druckverfahren
Farben Schwarz, Cyan, Magenta, Gelb, Weiss
Druckbreite 21,16 mm (0,83") - max. 127,6 mm (4,95")
Drucklänge 12,7 mm (0,5") - 1320,8mm (52")
Druckauflösung Bis zu 1200 x 1200 dpi
Druckgeschwindigkeit Max 152,4mm/s (6ips) (9,12 Meter/Min.)
Medienbreite 24,4 mm (1") – 130,0 mm (5,1")
Medientyp Endlos-Etikett, Endlos-Papier, Gestanztes Etikett, Blackmark Papier, Blackmark Etikett
Medienerkennung Endlosetikett, gestanztes Etikett, Etikett mit Blackmark
Schneidesystem Auto-cutter (Rollenschneider)
Kern-Innendurchmesser 76,2mm / 3"
Rollen-Außendurchmesser Max. 203,2mm / 8"
Anschluss 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed)
Druckersprache PCL 5c emulation, PCL 6 (XL) emulation, Adobe PostScript 3
Unterstütztes Betriebssystem Ab Microsoft Windows 7
Prozessor ARM CPU 1.2 GHz
Speicher (Std./Max.) 2048 MB / 2048 MB
Festplattenlaufwerk 250 GB
Schriftart 136 Adobe PostScript-Schriftarten, PCL-Emulation, 81 skalierbare Schrftarten, 4 Bitmap-Schriftarten
Abmessungen (B x T x H) 1.040 x 477 x 441 mm
Gewicht 62 Kg
Stromverbrauch
 Betrieb: max 1.200 W / Durchschn. 710 W, Leerlauf 27 W, Energiesparmodus 25 W
Sicherheit un Umwelt
 CE-Zeichen, GS-Zeichen, WEEE und RoHS2 + REACH
Lebensdauer Toner / Bildtrommel (CMYK)
 9.000 seiten (A6, 20% Deckung pro Farbe)
Lebensdauer Toner / Bildtrommel (W)
 4.500 seiten (A6, 20% Deckung)
Lebensdauer Transferband / Fixiereinheit
 150.000 Seiten (ca. 44 km)
Lebensdauer Resttonerbehälter
 25.000 Seiten basierend auf 20% CMYK Deckung
Lebensdauer des Druckers
 500 km oder 5 Jahre
